DC Inverter U-match Series Duct Type Unit
30

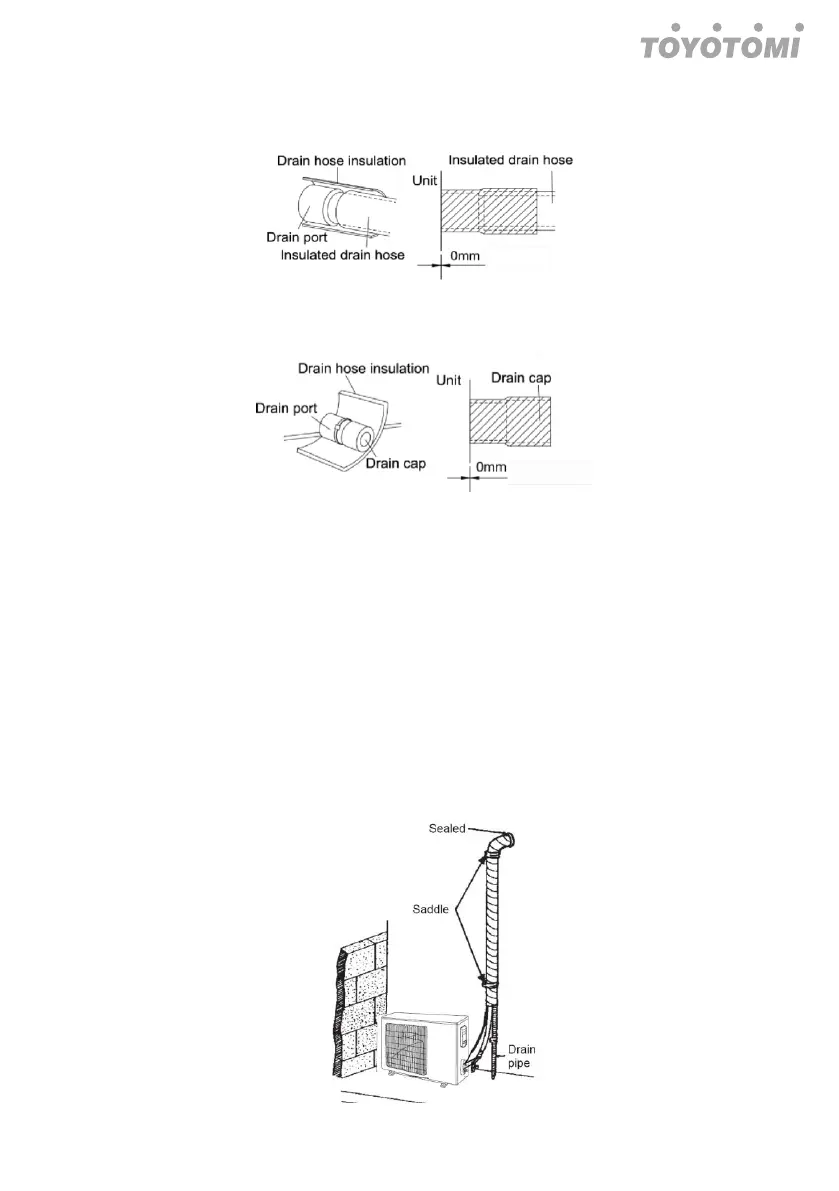

(9) Be sure to insulate where the drain port and the drain hose is connected. See
the following figure.
(10) The unused drain port also should be insulated properly. See the following
figure.
(11) There is adhesive on one side of the insulation so that after removing the
protective paper over it the insulation can be directly attached to the drain hose.
3.2.6.2 Outdoor Side Drainage Pipe
(1). If the outdoor unit is underneath the indoor unit, arrange the pipeline according
to the following diagram.
1) Drain hose should be placed on the ground and its end should not be
immersed into water. The whole pipeline should be supported and fixed
onto the wall.
2) Wind the insulating tape from bottom to top.
3) The whole pipeline should be wound with insulating tape and fixed onto
the wall with saddles.
