DC Inverter U-match Series Duct Type Unit

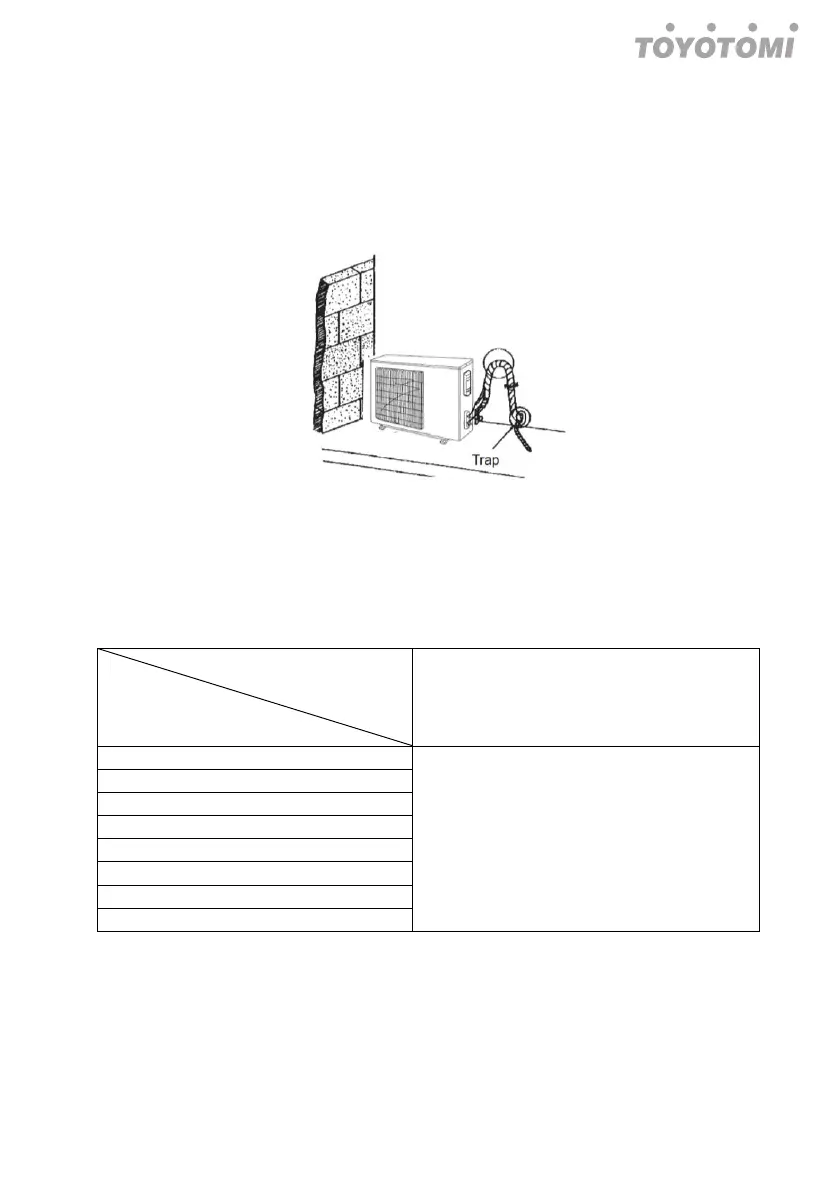

(2). If the outdoor unit is above the indoor unit, arrange the pipeline according to the
following diagram.
1) Wind the insulating tape from bottom to top.
2) The whole pipeline should be wound together to avoid water returning to
the room.
3) Use saddles to fix the whole pipeline onto the wall.
3.2.6.3 Drainage Riser with Pump Unit Considerations
(1) For the unit with the condensate pump, only one drain port at the side close to
the electric box is prepared and only through it the drain hose can be
connected.
Item
Model
Drain pipe
(outer dimension x wall thickness)(mm)
Ф26×1.5
(2) For the unit with the condensate pump, two drain ports at the bottom are
defaulted to be factory plugged with drain caps. After the installation of the drain
hose, these two drain ports also need to be insulated properly with the same
way aforementioned.
(3) The lifted installation height of drainage pipe is less than 1,000mm, as is shown
3.5KW
5.0KW
7.1KW
8.5KW
10.0KW
12.5KW
14.0KW
16.0KW
