50
GB
DC Inverter U-match Series Duct Type Unit
46
Only for 16.0KW
2) Outdoor side

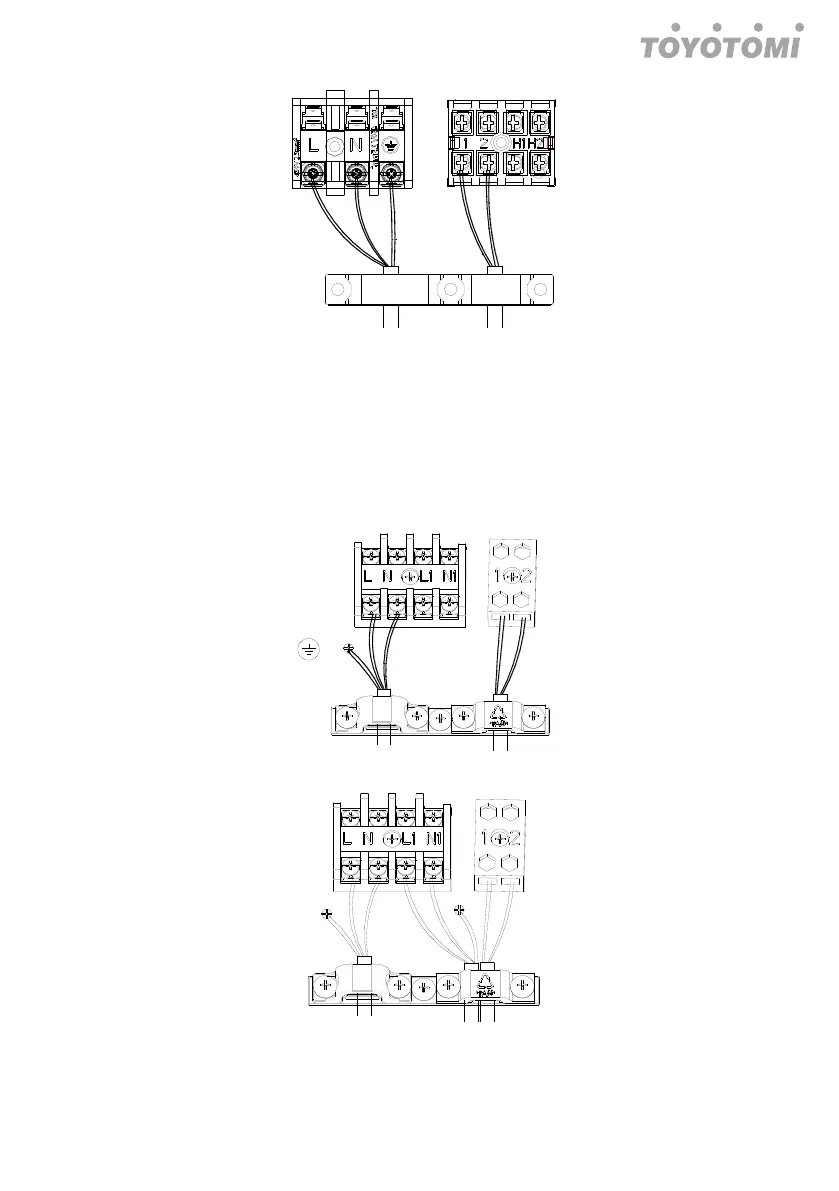

Remove the big handle/front panel of the outdoor unit and insert one end of the
communication cord and the power cord to the terminal board.
Single-phase:3.5KW,5.0KW,7.1KW,8.5KW
a) Wire routing of separated power supply:
b) Wire routing of unified power supply：
To Next Page
