DC Inverter U-match Series Duct Type Unit
47
Single-phase: 10.0KW, 12.5KW, 14.0KW

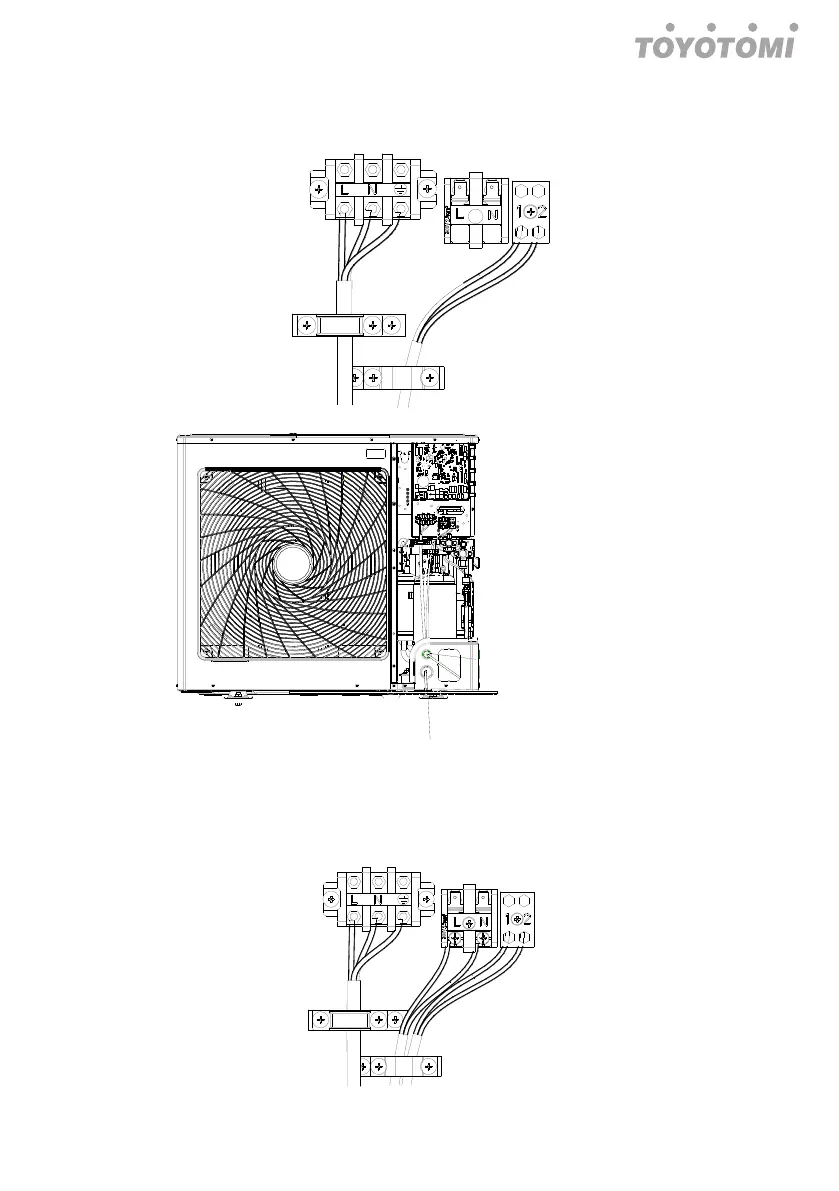

a) Wire routing of separated power supply for single phase.
The power cords of
outdoor unit and indoor
unit get in from the lower
hole.
The communication wire
gets in from the upper
hole.
b) Wire routing of unified power supply for single phase.
