Fluo DCT35IUINVR32 - Page 52

52
GB
DC Inverter U-match Series Duct Type Unit
48

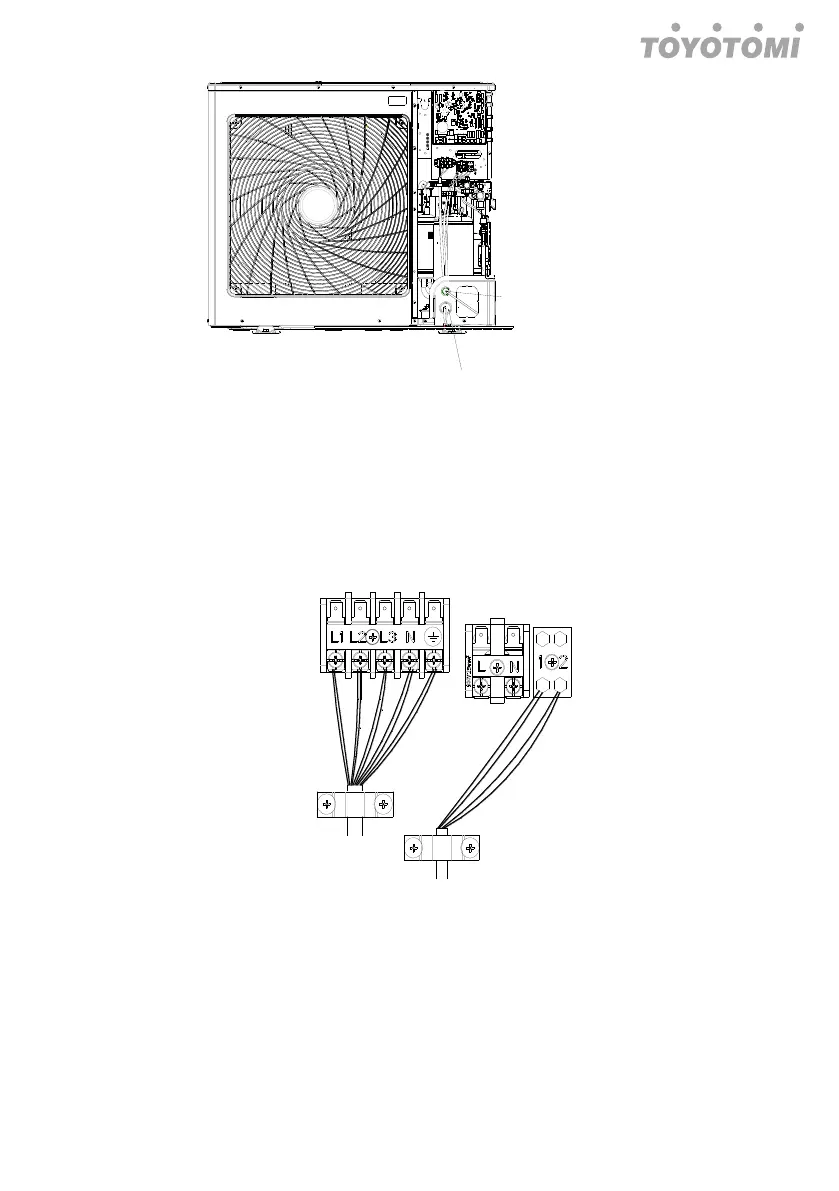

The power cords of
outdoor unit and indoor
unit get in from the lower
hole.
The communication wire
gets in from the upper hole
Three-phase:10.0KW, 12.5KW, 14.0KW, 16.0KW
a) Wire routing of separated power supply for three phase.
