Flymo Glider Compact 330 VC - Upper Handle Assembly; Grass Box Assembly

2. Push the push button (1) on the left side in the
handles.
3. Push the cable hook pin (4) on the right side in
the handles.
18
4. Put the 2 R-clips (8) along the grooves on the
push button and the cable hook pin.

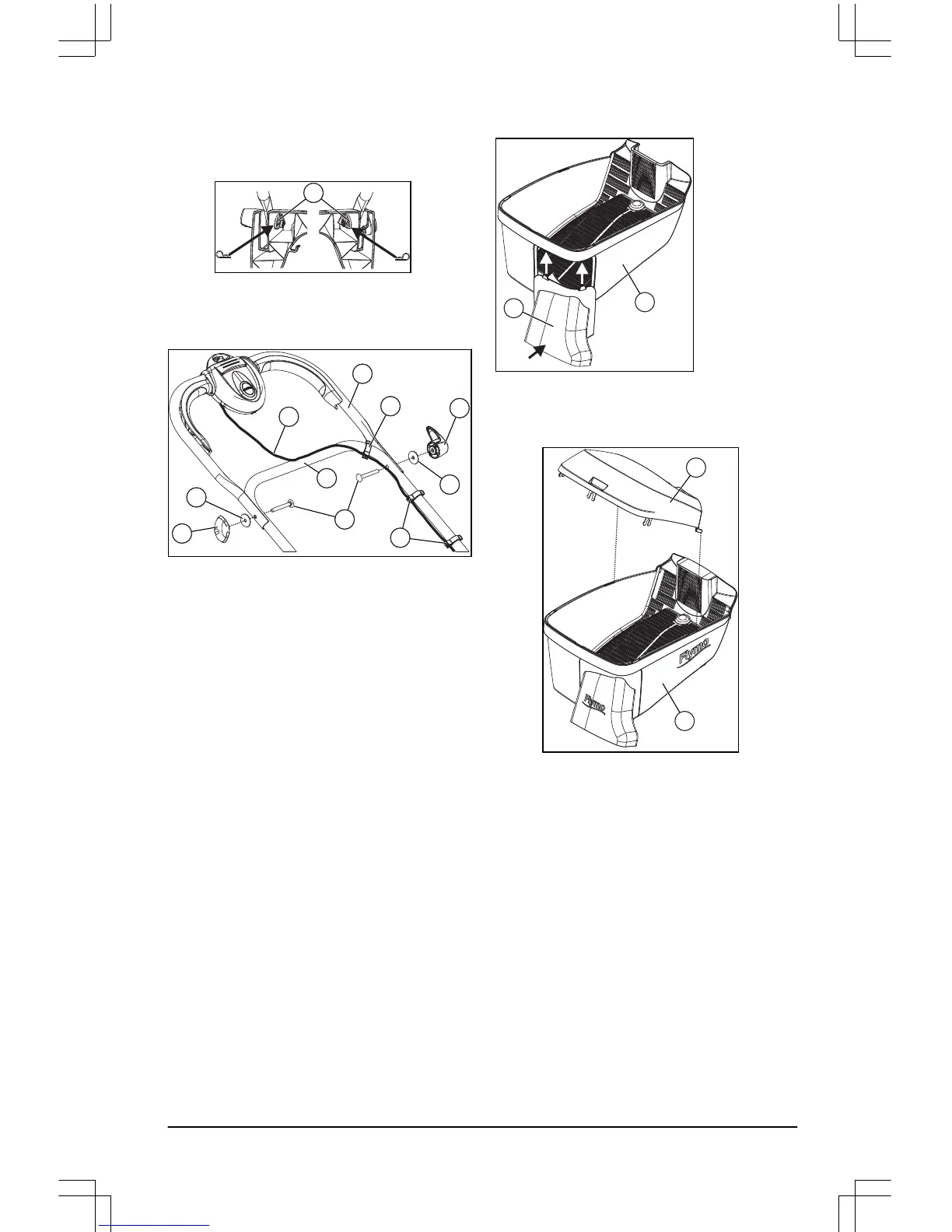

To assemble the upper handle
16
15
12
16
13
1
21
17
17
1
15
1
16
1. Put the upper handle (15) on the middle handle
(16).
Make sure that it is fully in place and the
handle holes are inline.
2. Push the handle bolts (5) through the holes.
3. Put the washer (6) and the wing knob (2) on the
left side (with the cable) on the handle bolt (5).
4. Put the washer (6) and the cable hook knob (3)
on the right side on the handle bolt (5).
5. Tighten the wing knob (2) and the cable hook
knob (3).
6. Fix the cable (21) to the upper handle (15) and
middle handle (16) with the cable clips (7).
7. Check that the cable (21) is not trapped between
the middle handle (16) and the upper handle
(15).
To assemble the grass box
11
19
1. Put the tongues of the grass box chute (11) into
the grooves of the grass box (19) and push the
grass box chute (11) into the grass box (19) until
the connections click.
13
19
2. Put the hooks of the grass box cover (13) into the
grooves of the grass box (19)
3. Push the grass box cover (13) on the grass box
(19) until the connections click.
Make sure that all connections are
connected.
