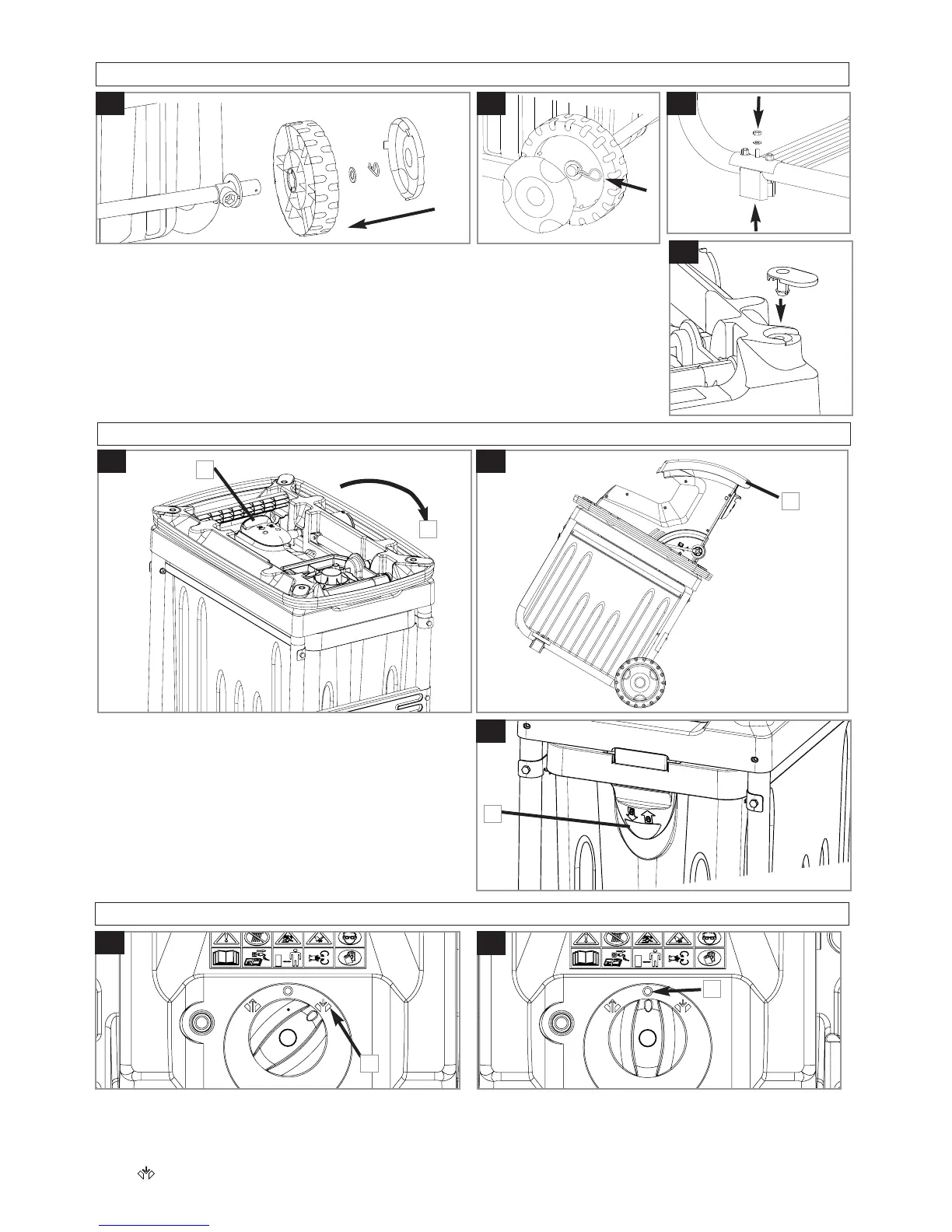

A1
1. Attach the wheel and washer onto the axle (A1) ensuring the wheel is secured with the
retaining pin (A2). Attach the hub cap, ensuring the clips and holes are aligned before
securing into place. Repeat on the other side.
2. Using the spanner provided, attach the support foot with the support foot bolt, washer
and nut as illustrated in pic. A3. Repeat on the other side.
3. Attach the cable hook to the product as illustrated in pic A4. Repeat for the other three
cable hooks. This enables the mains cable to be wrapped around the product for stor-
age and transportation (C).
Preparation
1. Unfold the product by sliding the catch (B1) and un-
folding through 90
o
(B2) until it locks into the operat-
ing position.
2. The product can be transported to the required loca-
tion by holding the transport handle (C1) and tilting it
onto the wheels. as illustrated in pic C.
3. Before operating the product, ensure the collection
box is correctly located and the Interlock Switch (D1)
is securely in place. The product will not start if the In-
terlock Switch is not located correctly.
Assembly
A3A2
B
C
90
o
D
1
1
1
2
A4
Starting and Stopping
• Before starting, ensure that the Feed Inlet is empty
Starting
1. Unwind mains cable from around product and connect
to mains supply.
2. To start the product, turn the control switch clockwise to
the symbol (E1).
Stopping
1. To stop the product, turn the control switch
anti-clockwise back to the O symbol (F1).
E
1
F
1
