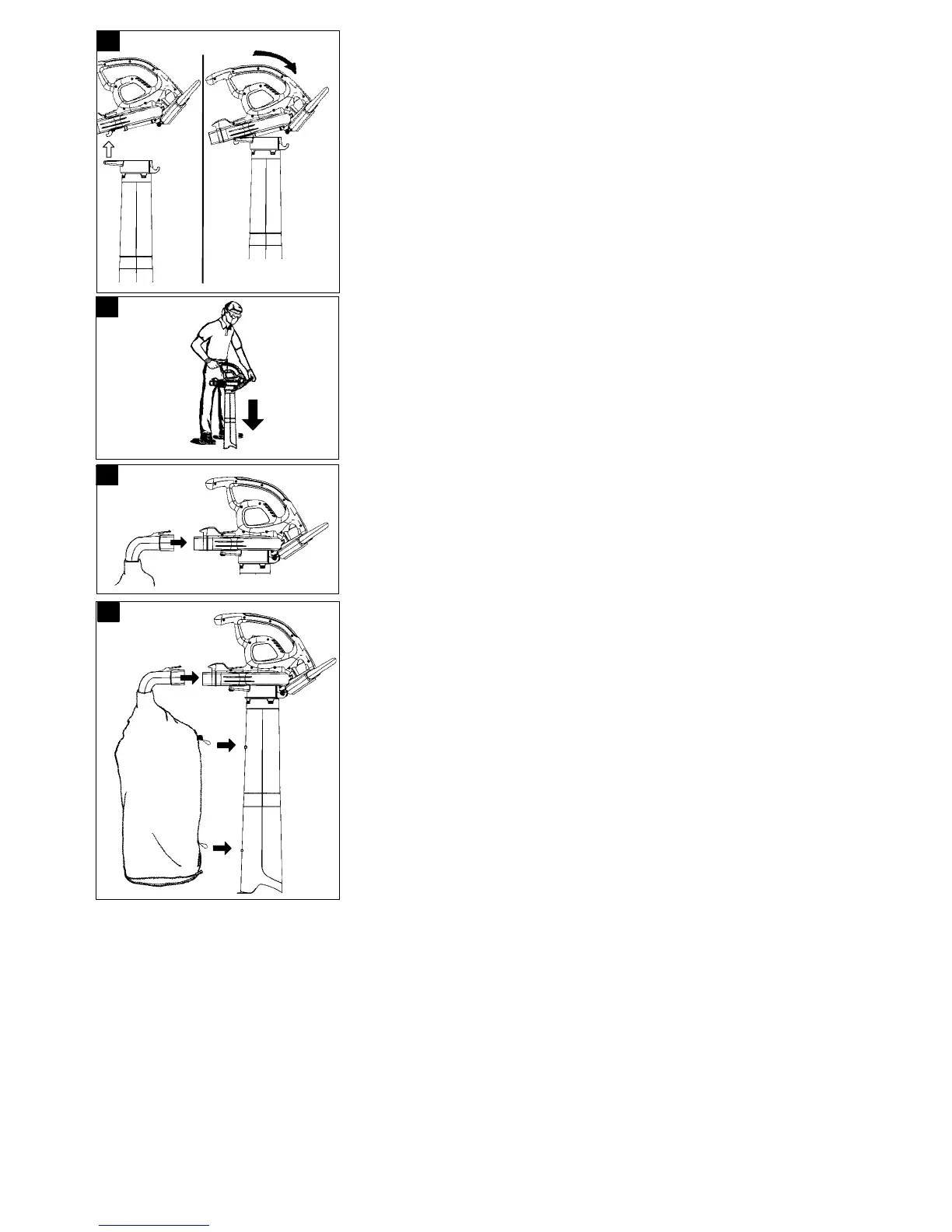

5. Place the hinge of the upper tube in-
to the hook on the bottom side of the
blower unit as illustration in figur e E.
F
6. Using the ground for support, pivot
the blower unit until tube snaps into
the latches of the retaining posts
on the blower unit as illustrated in
figure F.
G
7. Align the grooves on the elbow
tube with the grooves on the b lower
outlet as illustrated in figure G.
Push the elbow tube onto the
blower outlet until it snaps into
place; elbow tube is secured by
tube release button.
H
8. Clip the d ebris bag to the loops on
the upper a nd lower vacuum tubes
as illustrated in figure H.
