Flytec 5020 technical manual

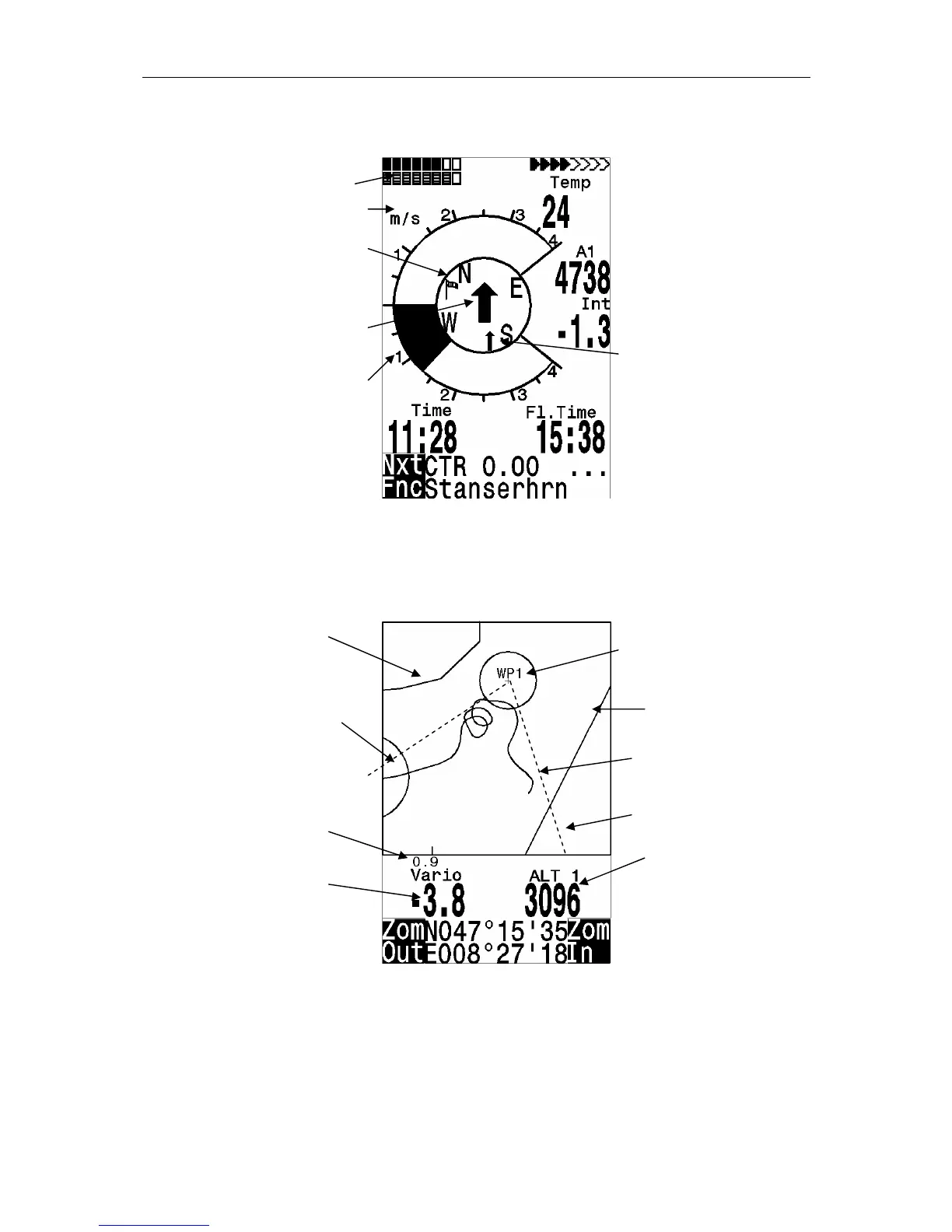

1.3 Main Screen
Direction of wind
Bearing to next waypoint
Direction to last
thermal
Function of F2
Function of F1
Dig. Variometer
Mode
Analogue Variometer
User selectable field
User selectable field
Altitude
Digitale Variometer
User selectable field
Number. of received
satellites from the
GPS system
Remaining battery
capacity of battery
bank 1 and 2
Unit of analogue vario
Information lines
1.4 Map Screen
Restricted area
Waypoint of a
route with cylinder
Digitale
Variometer
Altitude
Scale
Track, of
the actual
f
li
g
ht
Waypoint of a
route with cylinder
(Restricted area)
not implemeted yet
Route in case of a
competition route
Function of F2 Function of F1
Information lines
The flight route of saved flights can also be shown on the display and viewed. Flight
Analysis is reached by pressing F1 to display the function Show Map. The screen-optimized
flight route is shown on the display. (North is located at the top) Additionally, stored way-
points are plotted with a cross and name. The map scale is displayed too.
The graph can now be changed as follows:
