Flyzone B-25 mitchell - Assembly Instructions; Connecting Electronics and Power; Wing and Landing Gear Attachment

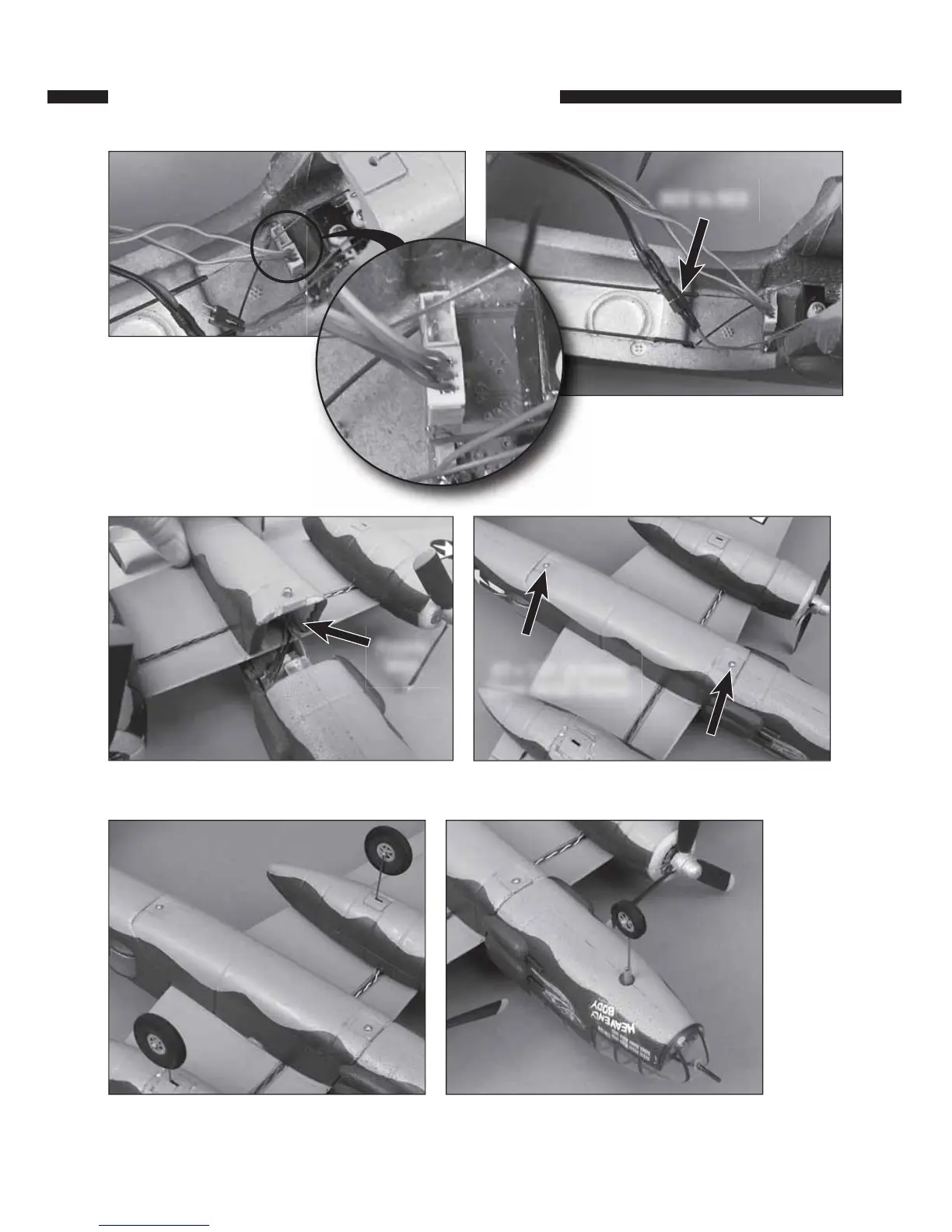

ASSEMBLE THE MICRO B-25 MITCHELL
4
RED to RED
1. Plug the white micro
connector from the ESC
into the receiver board. Be
careful to plug the battery
in correctly.
3. Attach the wing.
2. Connect the power lead.
4. Insert the main landing gear. 5. Insert the nose gear.
#2 x 3/8" [9.5mm]
Sheet Metal Screws
Excess
Wire
