3
1
6
2
7
8
9
3
5
4
11
10

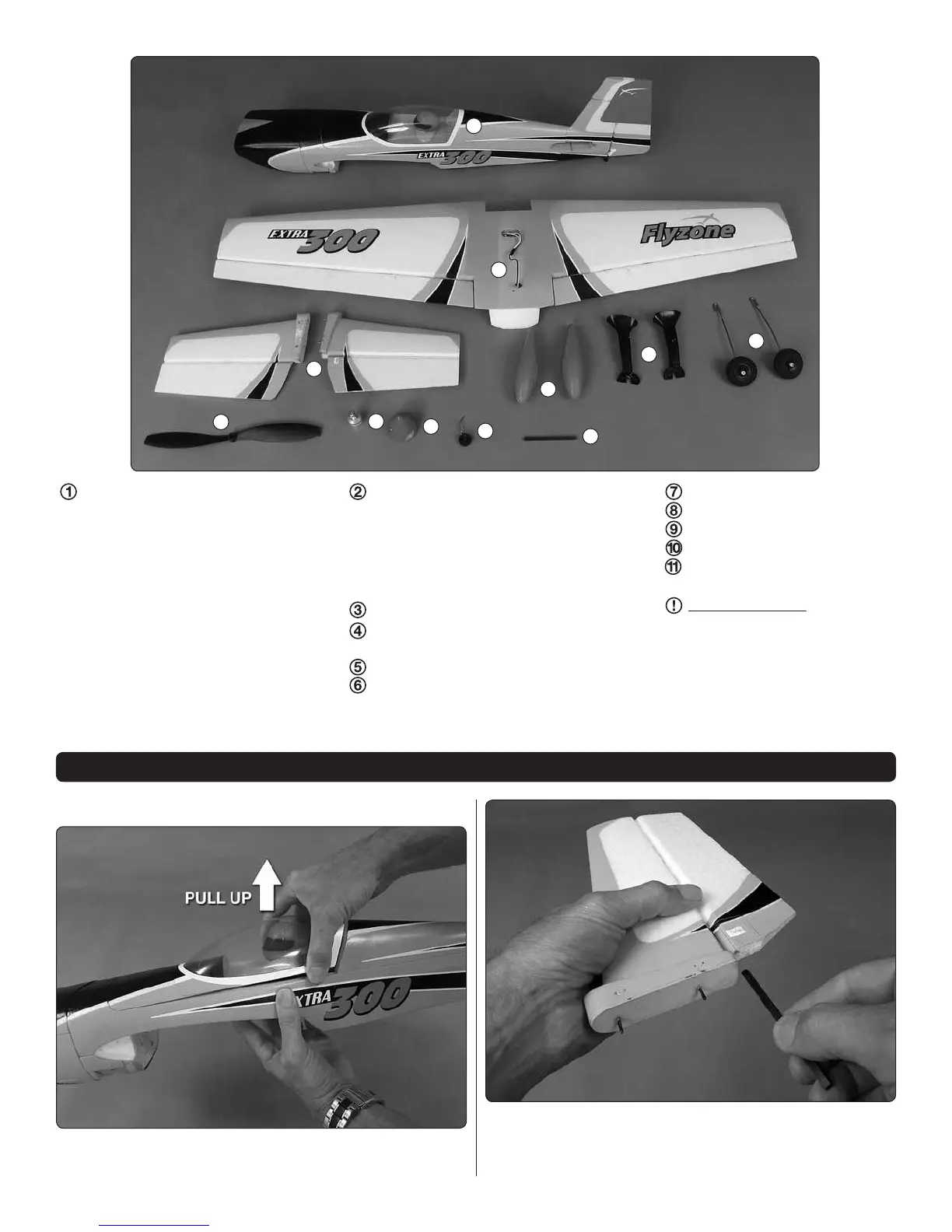

Fuselage
Foam fuselage
Foam canopy hatch w/pilot
Foam cowl
30A ESC
Motor
Elevator servo
Rudder servo
Control linkage (elevator, rudder
pushrods, screw-lock connectors,
90° pushrod connectors)
10 x 4.5 propeller
1-3/4" spinner
Propeller adapter assembl
Elevator joiner rod
Tail gear assembly
NOT PICTURED
Velcro
1.5mm hex key wrench
M3 set screw
M4 x 40 wing bolt
Wing
Foam wing
Aileron servos (2)
Servo extensions
Y-harness
Aileron linkage (pushrods, screw-lock
connectors, 90° pushrod connectors)
R&L horizontal stabilizer halves
R&L main landing gear wires
w/50mm wheels, retainers
R&L main landing gear covers
R&L wheel pants
Do not mount the propeller until instructed to do so.
To remove the canopy hatch, grasp the base around the
bottom and pull up to disengage the magnets.
❑
1. Fit the square elevator joiner tube into one of the
elevators.
ASSEMBLY
