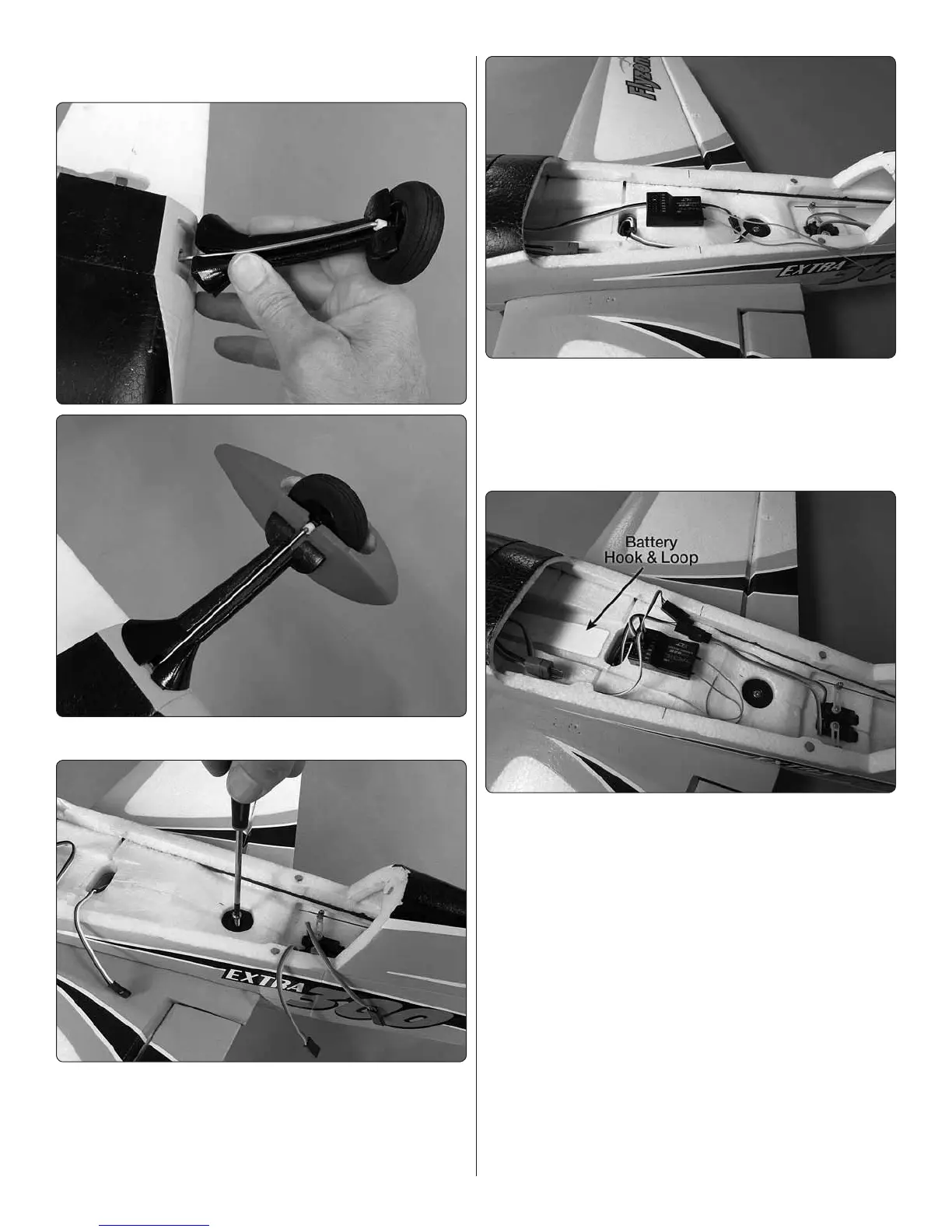

The landing gear covers and wheel pants are magnetic
and simply snap into place…
❑
7. Install the landing gear covers, then the wheel pants.
❑
8. Install the wing while guiding the aileron servo wire
up through the hole in the fuselage. Tighten the wing with
the M4 x 40 screw.
❑
9. Mount your receiver in the fuselage with the included
short, adhesive-back hook-and-loop strip—note that the
high end of the receiver (that has the servo plugs sticking
out) must be ahead of the instrument panel in the canopy
hatch (marked by a line in the photo approximately 2-1/2”
[65mm] ahead of the wing bolt).
❑
10.
Connect the servo and ESC wires to the receiver.
If using a dual-diversity receiver with two antennas, use
tape to hold the antennas perpendicular to each other as
speci ed in the instruction manual that came with your
radio control system. More tape may be used to neatly hold
the servo wires out of the way. (The servo wire extensions
on the elevator and rudder servos that appear in the image
are not needed on your model because the wires have
been lengthened since these photos were taken.)
❑
11. Apply the rougher, “hook” side of the included
longer hook-and-loop material in the battery mounting
location in the fuselage as shown in the previous photo.
