Magnetic Pickup Enclosures
Magnetic pickup assemblies may require an enclosure to assure protection against the environment. Three types of enclosures
are available. These are:

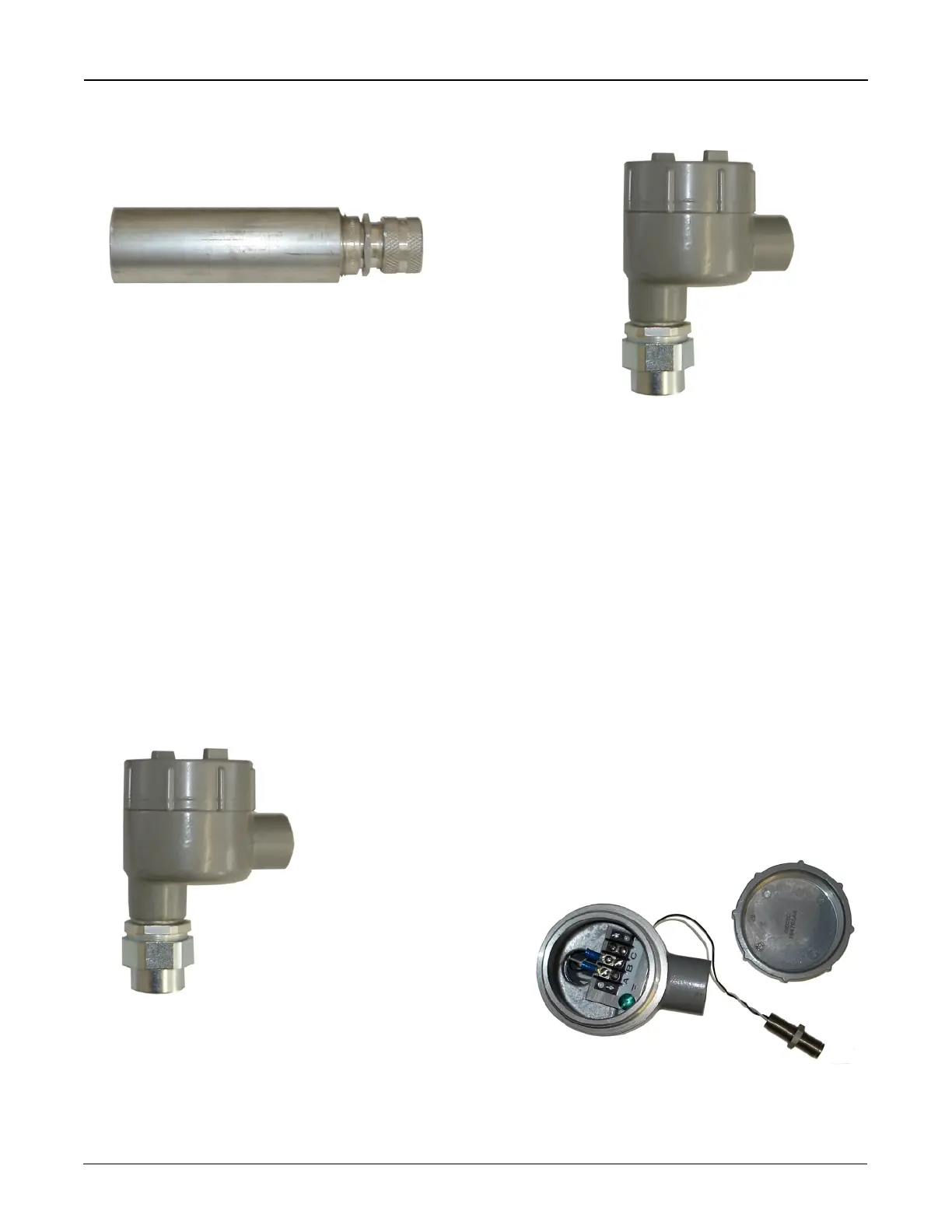

WAK-2 Weatherproof Adapter
This kit provides an enclosure for the magnetic pickup to
protect it from physical damage, weather, hose down or high
humidity environments. A one inch (1”) NPT outlet is pro-
vided at the top for the adapter for a conduit connection. The
adapter is provided with a factory installed cable clamp de-
signed to squeeze the cable for weather-proofing. When
conduit is used, the cable clamp is removed.
EAK-2 Explosion-proof Adapter
This kit provides an explosion-proof enclosure for the
magnetic pickup. The enclosure is rated Class I, Divi-
sion I, Group D. The enclosure is provided with a one
and a quarter inch (1-1/4”) NPT connection for conduit.
EAK-2AX-P Explosion-proof Adapter with Terminal Block (Figure 10)
This kit provides an explosion-proof enclosure with a 3 point terminal strip. The enclosure is provided with either a
two wire lead magnetic pickup, a pre-amp magnetic pikcup (requires a 5 to 32 volts DC external power) or an RF
pickup (requires 5 to 26 volts DC external power).
Model EAK-2BX-P Explosion-
proof adapter with RF or
Transmission Signal Pre-amp
type pickup. 8” cable with
mating connector and termi-
nal strip.
Model EAK-2AX-P Explosion-
proof adapter with wire lead
magnetic pickup and 3 point
terminal strip.
