Fuselage/tail assembly

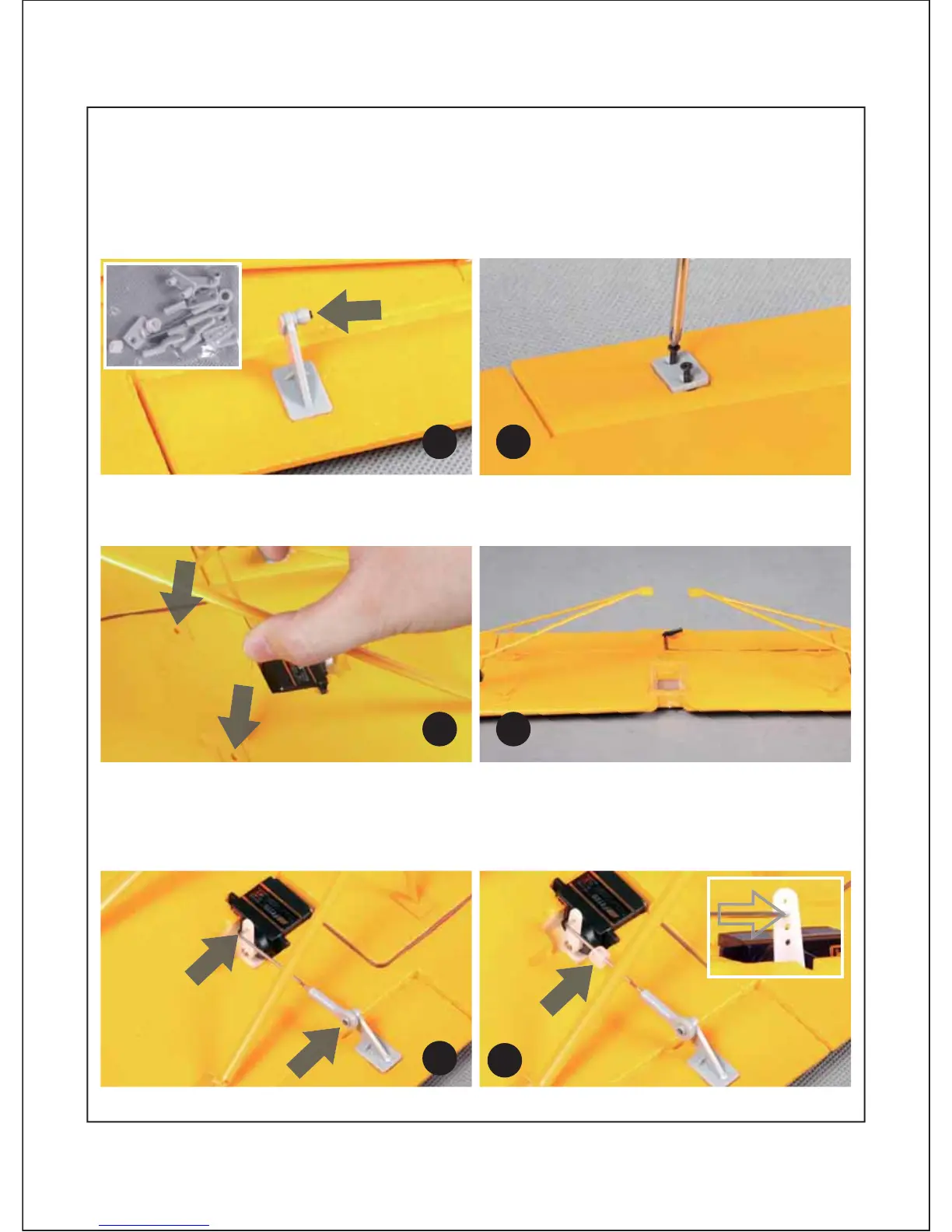

1.Place the ball-linked control horn on the aileron surface. Make sure that the orientation of the
ball-link is placed as shown on the picture below. (Fig.1)
2.Once aligned, secure the control horn on the aileron surface with the included screws.(Fig.2)
3.Attach the wing-brace to the attachment points on the wing. (Fig.3 and 4)
4.Connect the pushrods to the ball-links; make sure that the pushrod goes through the second hole
of the servo arm. Finish by attaching the plastic retainers so that the pushrod does not detach from
the servo arm. (Fig. 5-8)
