4-3

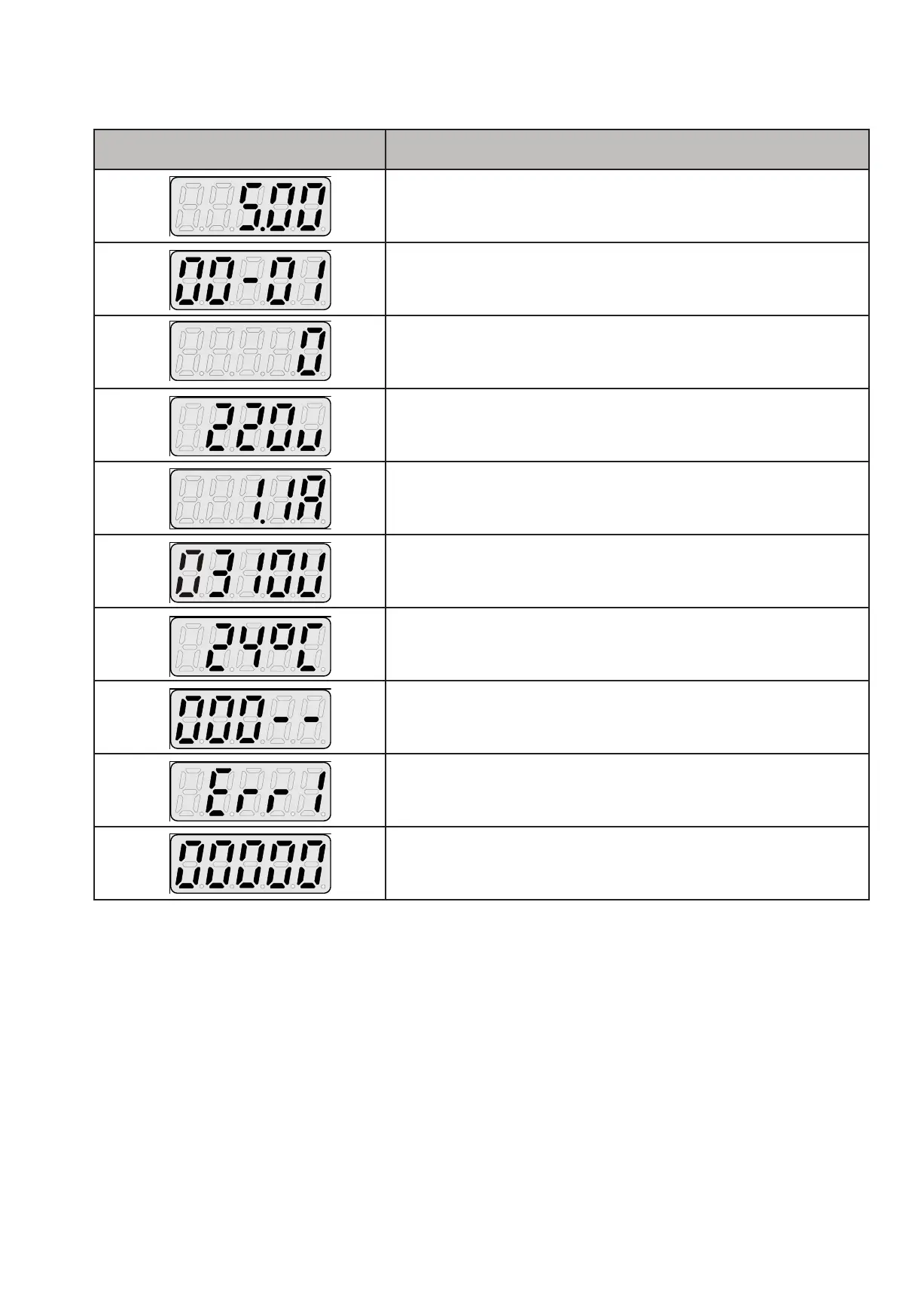

LED Display Examples
Seven Segment display Description
1. Displays the frequency reference at power-up
2. Displays the actual output frequency in run operation.
Displays parameter code
Displays the setting value of parameter
Displays input voltage class (note)
Displays AC Drive current.
Displays DC Bus Voltage
Displays temperature
Displays PID feedback value. The displayed digit is set by 12-01.
Error display, refer to Chapter 7 Troubleshooting and maintenance
Analog Current / Voltage AI1 / AI2. Range (0–1000)
Note: When power is applied to the drive, the display will temporarily flash the input voltage class of that model. This
display uses the same unit (small “v’) as the output voltage monitor.
