4-4
State Description Hz/RPM LED
Off Display doesn’t show frequency or line speed
Illuminated Display shows frequency or line speed

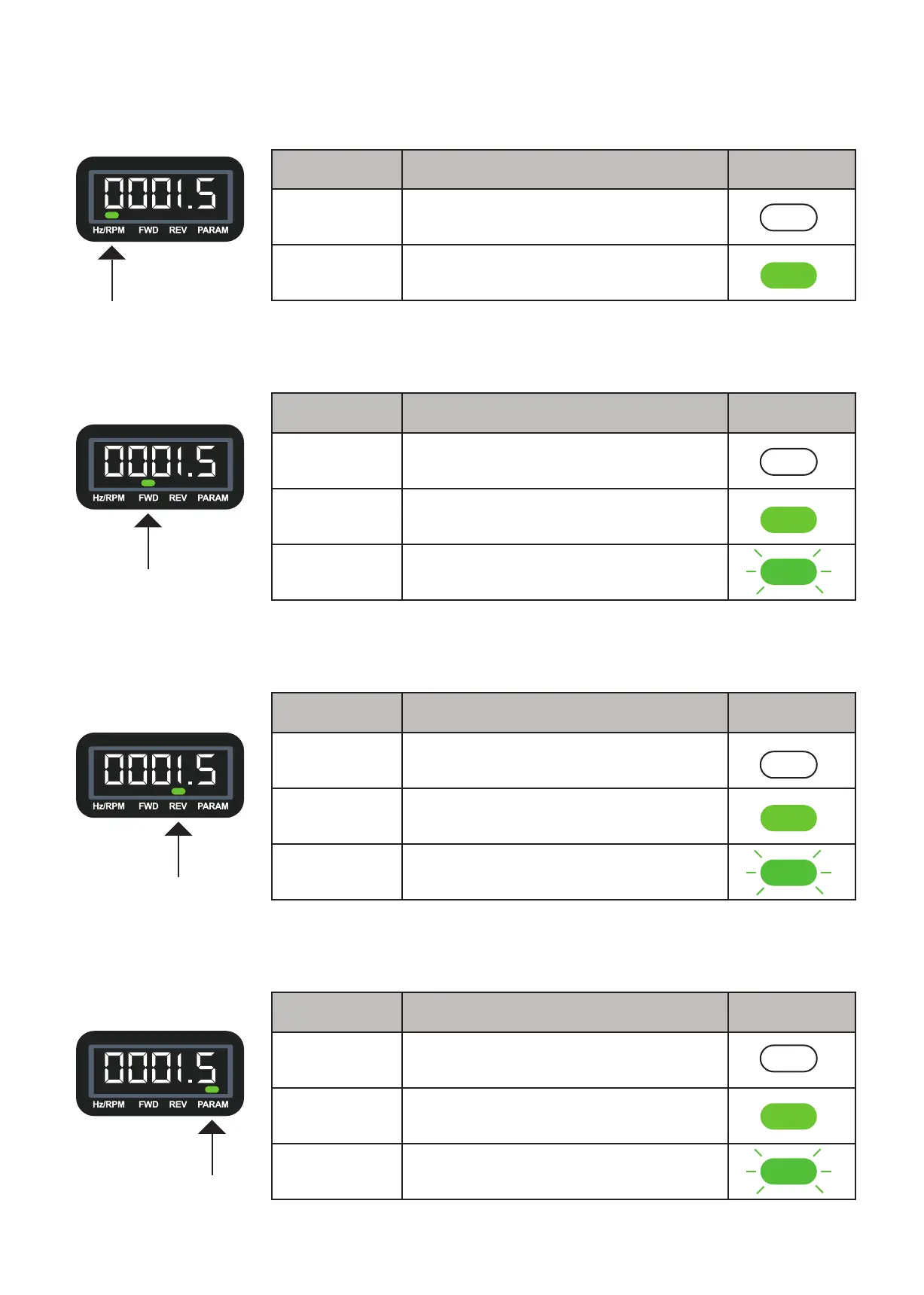

4.1.3 LED Status Description
Hz/RPM LED
State Description Forward LED
Off AC Drive in reverse direction
Illuminated AC Drive is running in forward direction
Flashing Forward direction active, no run command
State Description Reverse LED
Off AC Drive in forward direction
Illuminated AC Drive is running in reverse direction
Flashing Reverse direction active, no run command
State Description PARAM LED
Off Display doesn’t show parameter
Illuminated Display shows parameter
Flashing Fire mode enabled
FWD LED
REV LED
PARAM LED
