Stop Fo

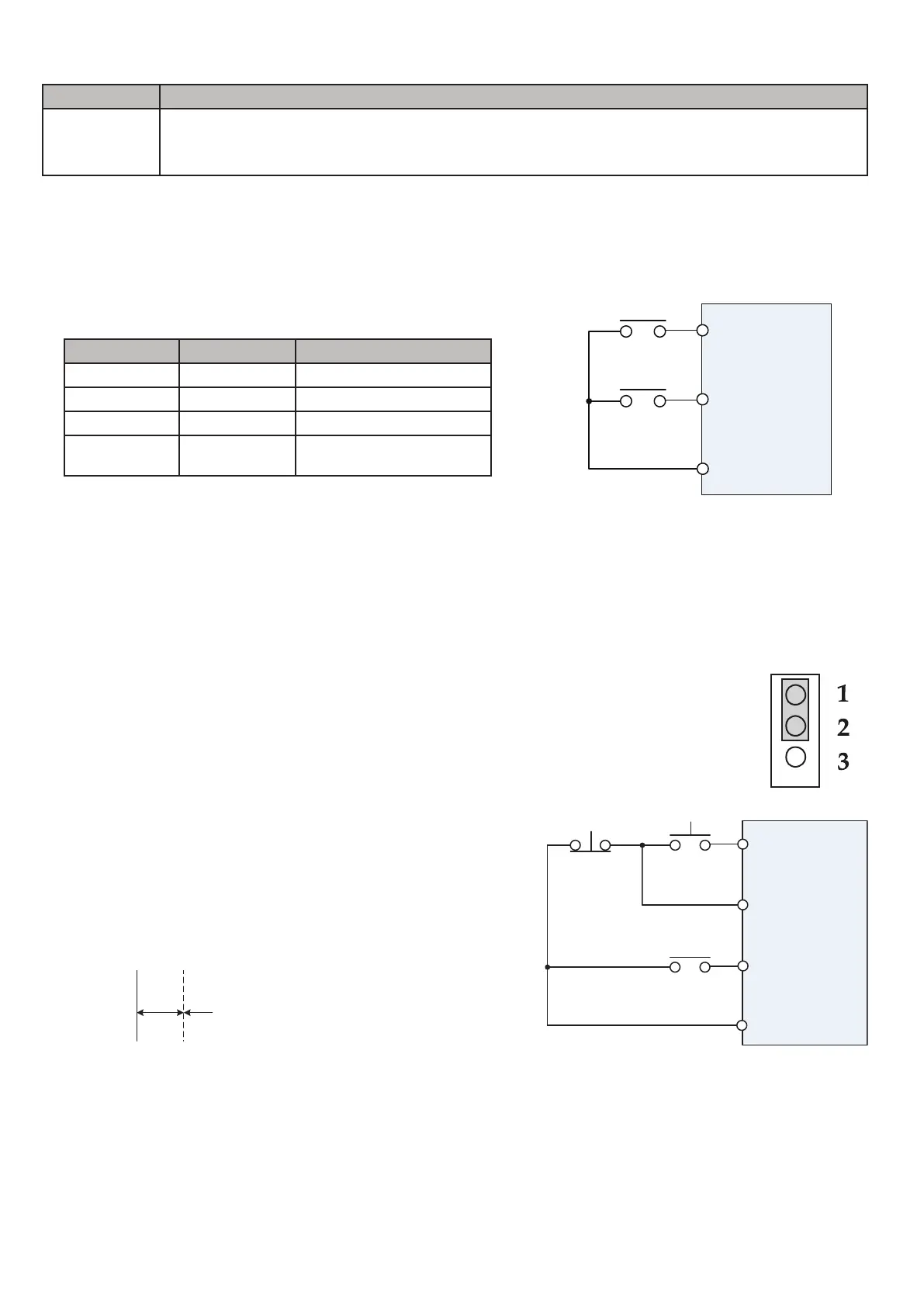

3-wire operation
Set parameter 00-04 to 2 for 3-wire program initialization, multi-function input terminal S1 is set to run operation, S2
for stop operation and S3 for forward/reverse command. Ensure JP1 is set to position 1 and 2.
Note: Terminal S1 must be closed for a minimum of 50ms to activate operation.
S1
S2
S3
Forward/Reverse
selection
COM
Operation
(normally open
Momentary switch)
Stop
(Normally Close
Momentary
switch)
Stop Command
(Off: Stop)
Run Command
(On:Run)
JP1
Note: 00-04 is valid when run command is set to external mode by 00-02/00-03 =1.
2 Wire Operation Mode,
Set 00-04 to【0】or【1】first, before setting 03-00 (S1 terminal selection) to 0 and 03-01 (S2 terminal selection) to 1
Terminal S1 Terminal S2 Operation
Open Open Stop AC Drive
Closed Open Run Forward
Open Closed Run Reverse
Closed Closed
Stop AC Drive, Display
EF9 Alarm after 500ms
S1
S2
COM
Forward
Reverse
00-04 Operation Modes for External Terminals Default: 0
Range
【0】: Forward/Stop-Reverse/Stop
【1】: Run/Stop- Reverse/ Forward
【2】: 3 Wire Control Mode - Run/Stop
