17
 When the battery communicates with the inverter through RS485, the matching resistor must
be inserted into the RS485 connector of the last battery in parallel.
 Note: When only one battery is connected to the inverter communication, a matching resistor
is also inserted.

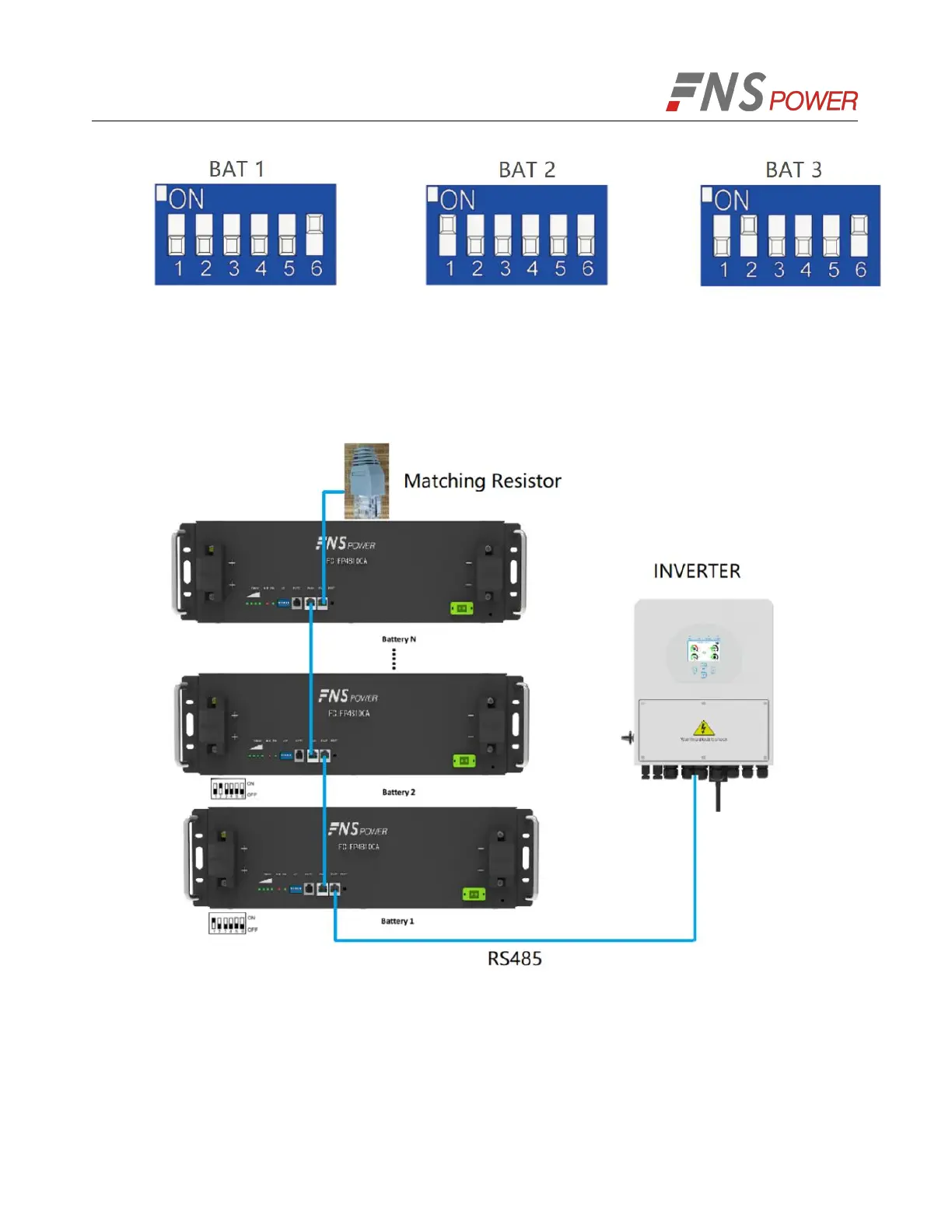

Figure 5-7: Multiple batteries connected to the inverter
