SOLO6 - TWIN6 - SUB12
Professional Analogue Monitoring System - User Manual
EN
F

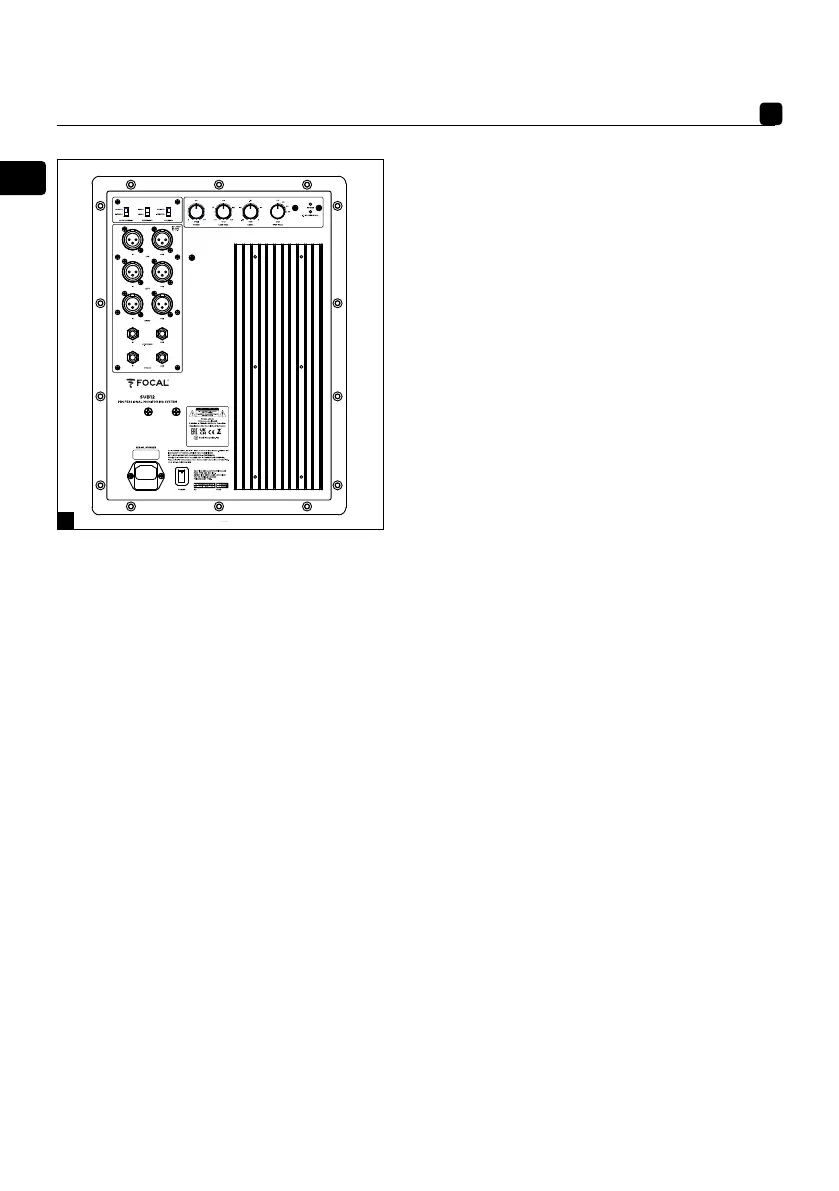

1. Input sensitivity switch
2. Automatic stand-by switch
3. LEF input and output switches
4. Left signal input and output switches
5. Right signal input and output switches
6. 1/4" (6.35mm) jack connector for 2.1 Bypass remote control
7. Focus mode input and output switches
8. Polarity switch
9. Phase control
10. Low-pass crossover potentiometer
11. Volume control
12. High-pass crossover switch
13. On/off mode indicator
POWER LED:
- on (continuous green)
- stop (continuous red)
- protection (flashing red)
14. 2.1 BYPASS/mute LED: on (continuous green)
