- 38 -
8
8
.
.
T
T
R
R
A
A
N
N
S
S
M
M
I
I
T
T
T
T
E
E
R
R
O
O
P
P
E
E
R
R
A
A
T
T
I
I
O
O
N
N
&
&
S
S
T
T
A
A
T
T
U
U
S
S
L
L
I
I
G
G
H
H
T
T

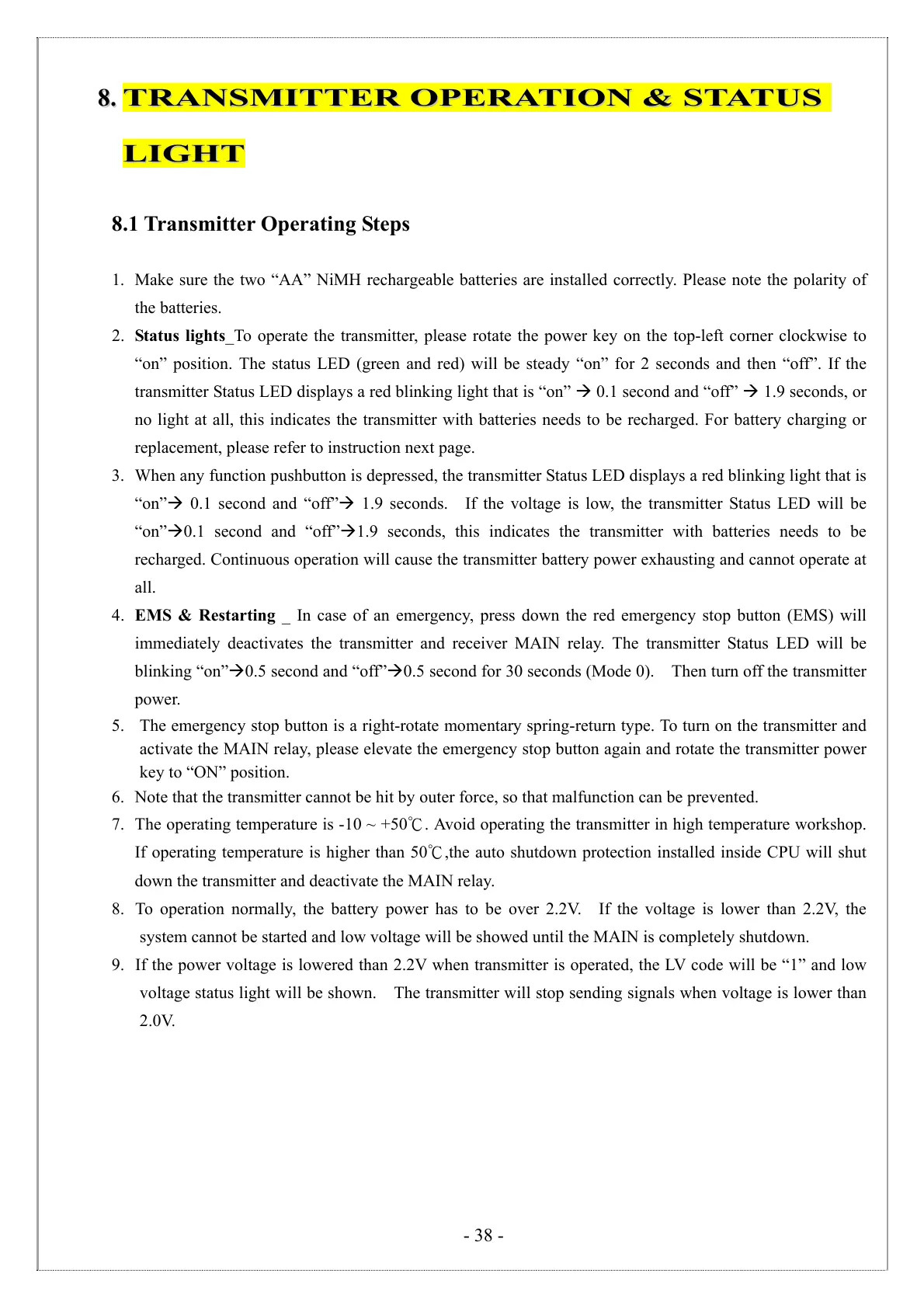

8.1 Transmitter Operating Steps
1. Make sure the two “AA” NiMH rechargeable batteries are installed correctly. Please note the polarity of
the batteries.
2. Status lights_To operate the transmitter, please rotate the power key on the top-left corner clockwise to
“on” position. The status LED (green and red) will be steady “on” for 2 seconds and then “off”. If the
transmitter Status LED displays a red blinking light that is “on” 0.1 second and “off” 1.9 seconds, or
no light at all, this indicates the transmitter with batteries needs to be recharged. For battery charging or
replacement, please refer to instruction next page.
3. When any function pushbutton is depressed, the transmitter Status LED displays a red blinking light that is
“on” 0.1 second and “off” 1.9 seconds. If the voltage is low, the transmitter Status LED will be
“on”0.1 second and “off”1.9 seconds, this indicates the transmitter with batteries needs to be
recharged. Continuous operation will cause the transmitter battery power exhausting and cannot operate at
all.
4. EMS & Restarting _ In case of an emergency, press down the red emergency stop button (EMS) will
immediately deactivates the transmitter and receiver MAIN relay. The transmitter Status LED will be
blinking “on”0.5 second and “off”0.5 second for 30 seconds (Mode 0). Then turn off the transmitter
power.
5. The emergency stop button is a right-rotate momentary spring-return type. To turn on the transmitter and
activate the MAIN relay, please elevate the emergency stop button again and rotate the transmitter power
key to “ON” position.
6. Note that the transmitter cannot be hit by outer force, so that malfunction can be prevented.
7. The operating temperature is -10 ~ +50℃. Avoid operating the transmitter in high temperature workshop.
If operating temperature is higher than 50℃,the auto shutdown protection installed inside CPU will shut
down the transmitter and deactivate the MAIN relay.
8. To operation normally, the battery power has to be over 2.2V. If the voltage is lower than 2.2V, the
system cannot be started and low voltage will be showed until the MAIN is completely shutdown.
9. If the power voltage is lowered than 2.2V when transmitter is operated, the LV code will be “1” and low
voltage status light will be shown. The transmitter will stop sending signals when voltage is lower than
2.0V.
To Next Page
