- 42 -

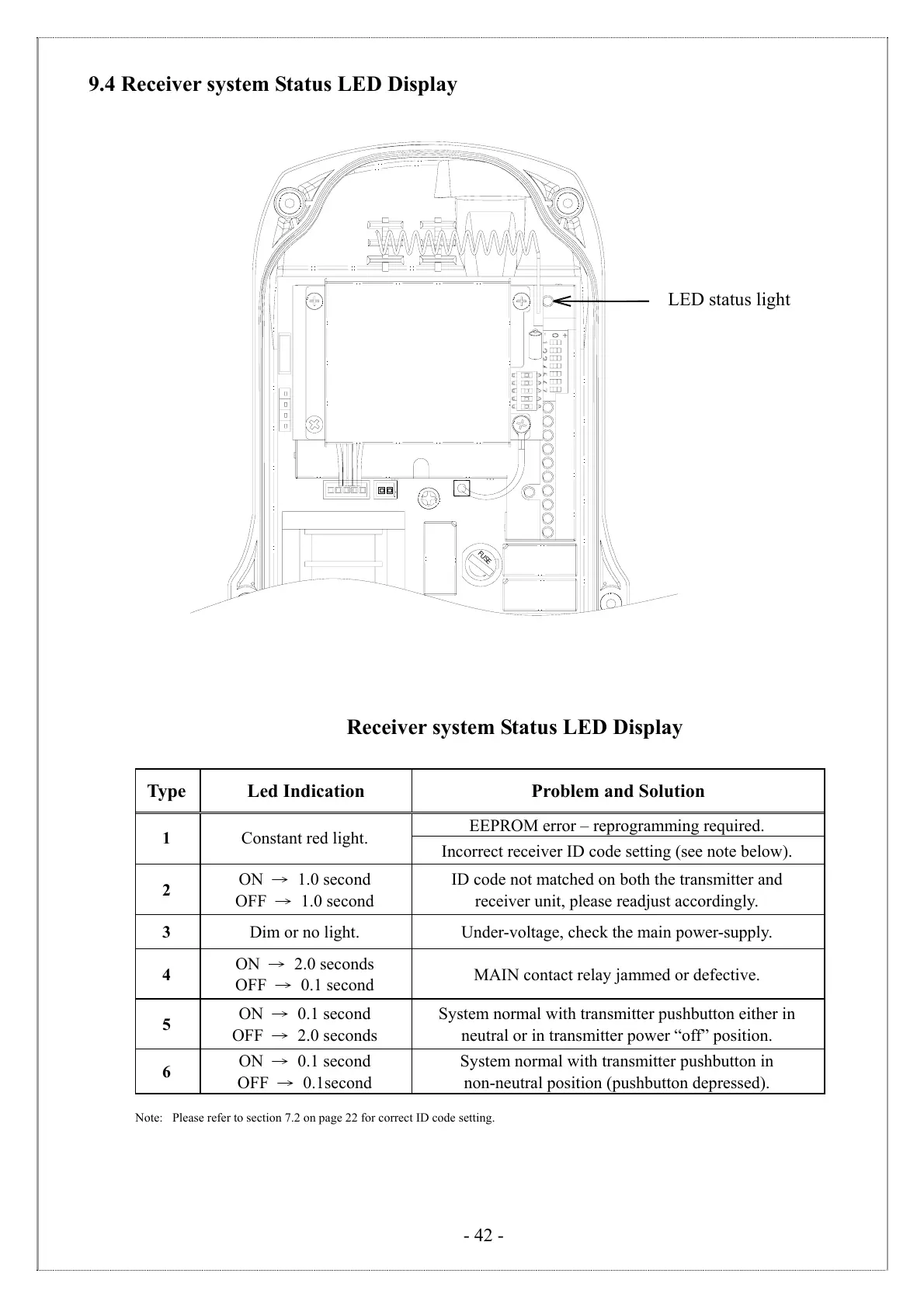

9.4 Receiver system Status LED Display
F
U
S
E
Receiver system Status LED Display
Type Led Indication Problem and Solution
EEPROM error – reprogramming required.
1 Constant red light.
Incorrect receiver ID code setting (see note below).
2
ON → 1.0 second
OFF → 1.0 second
ID code not matched on both the transmitter and
receiver unit, please readjust accordingly.
3 Dim or no light. Under-voltage, check the main power-supply.
4
ON → 2.0 seconds
OFF → 0.1 second
MAIN contact relay jammed or defective.
5
ON → 0.1 second
OFF → 2.0 seconds
System normal with transmitter pushbutton either in
neutral or in transmitter power “off” position.
6
ON → 0.1 second
OFF → 0.1second
System normal with transmitter pushbutton in
non-neutral position (pushbutton depressed).
Note: Please refer to section 7.2 on page 22 for correct ID code setting.
LED status light
