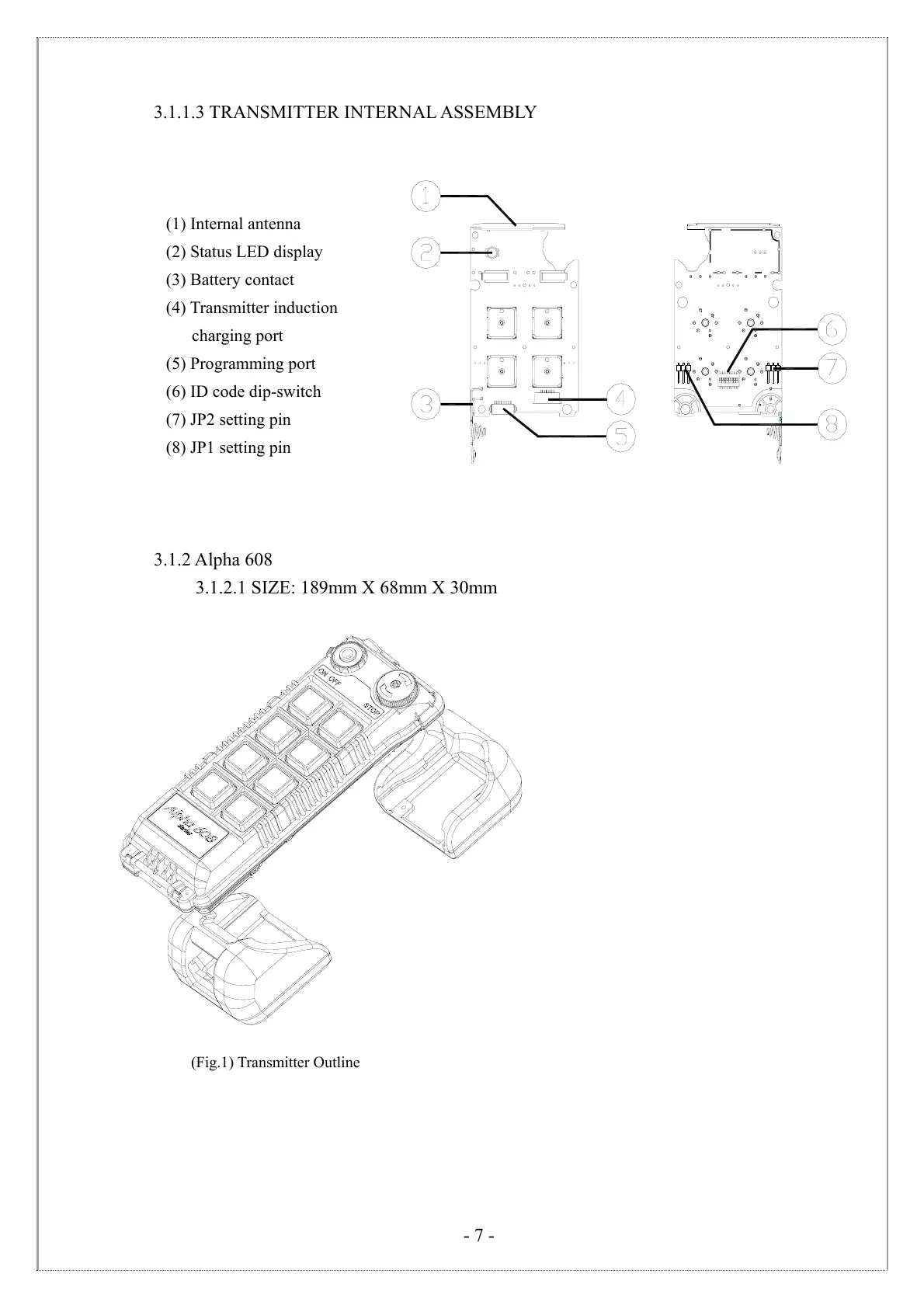

3.1.1.3 TRANSMITTER INTERNAL ASSEMBLY
(1) Internal antenna
(2) Status LED display
(3) Battery contact
(4) Transmitter induction
charging port
(5) Programming port
(6) ID code dip-switch
(7) JP2 setting pin
(8) JP1 setting pin
3.1.2 Alpha 608
3.1.2.1 SIZE: 189mm X 68mm X 30mm
(Fig.1) Transmitter Outline
