Fomotech Alpha 604B - Receiver RF Channel Setting; Receiver Function Setting (Alpha 604;607;608)

- 32 -
F
U
S
E
JP1
OPEN→JUMP
SHORT→JUMP
AC
DIP-SW
U
JP3
JP2
JP4

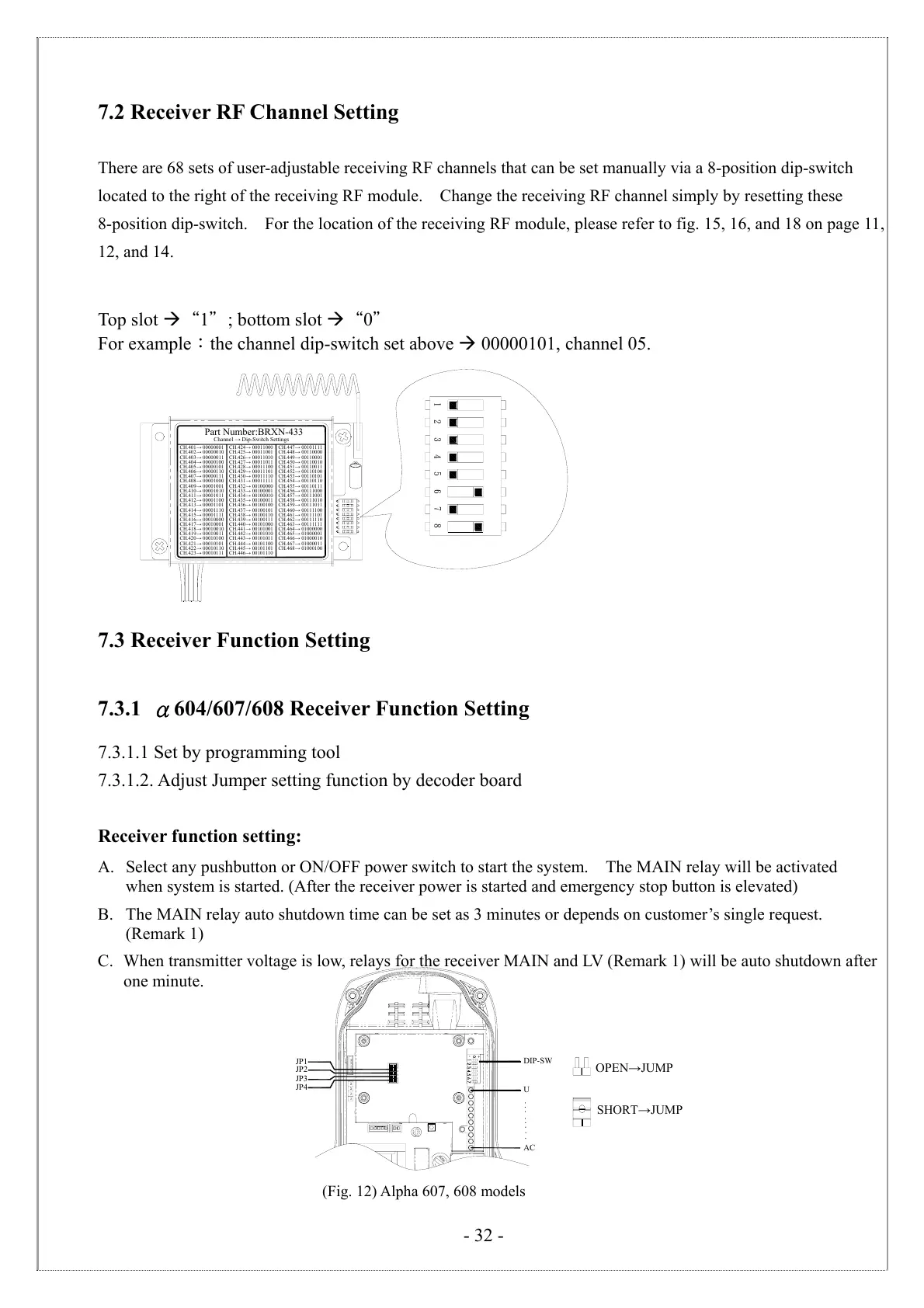

7.2 Receiver RF Channel Setting
There are 68 sets of user-adjustable receiving RF channels that can be set manually via a 8-position dip-switch
located to the right of the receiving RF module. Change the receiving RF channel simply by resetting these
8-position dip-switch. For the location of the receiving RF module, please refer to fig. 15, 16, and 18 on page 11,
12, and 14.
Top slot “1＂; bottom slot “0＂
For example：the channel dip-switch set above  00000101, channel 05.
7.3 Receiver Function Setting
7.3.1 α604/607/608 Receiver Function Setting
7.3.1.1 Set by programming tool
7.3.1.2. Adjust Jumper setting function by decoder board
Receiver function setting:
A. Select any pushbutton or ON/OFF power switch to start the system. The MAIN relay will be activated
when system is started. (After the receiver power is started and emergency stop button is elevated)
B. The MAIN relay auto shutdown time can be set as 3 minutes or depends on customer’s single request.
(Remark 1)
C. When transmitter voltage is low, relays for the receiver MAIN and LV (Remark 1) will be auto shutdown after
one minute.
(Fig. 12) Alpha 607, 608 models
12 436587
Channel → Dip-Switch Settings
Part Number:BRXN-433
CH.401→ 00000001 CH.424→ 00011000 CH.447→ 00101111
CH.402→ 00000010 CH.425→ 00011001 CH.448→ 00110000
CH.403→ 00000011 CH.426→ 00011010 CH.449→ 00110001
CH.404→ 00000100 CH.427→ 00011011 CH.450→ 00110010
CH.405→ 00000101 CH.428→ 00011100 CH.451→ 00110011
CH.406→ 00000110 CH.429→ 00011101 CH.452→ 00110100
CH.407→ 00000111 CH.430→ 00011110 CH.453→ 00110101
CH.408→ 00001000 CH.431→ 00011111 CH.454→ 00110110
CH.409→ 00001001 CH.432→ 00100000 CH.455→ 00110111
CH.410→ 00001010 CH.433→ 00100001 CH.456→ 00111000
CH.411→ 00001011 CH.434→ 00100010 CH.457→ 00111001
CH.412→ 00001100 CH.435→ 00100011 CH.458→ 00111010
CH.413→ 00001101 CH.436→ 00100100 CH.459→ 00111011
CH.414→ 00001110 CH.437→ 00100101 CH.460→ 00111100
CH.415→ 00001111 CH.438
→ 00100110 CH.461→ 00111101
CH.416→ 00010000 CH.439→ 00100111 CH.462→ 00111110
CH.417→ 00010001 CH.440→ 00101000 CH.463→ 00111111
CH.418→ 00010010 CH.441→ 00101001 CH.464→ 01000000
CH.419→ 00010011 CH.442→ 00101010 CH.465→ 01000001
CH.420→ 00010100 CH.443→ 00101011 CH.466→ 01000010
CH.421→ 00010101 CH.444→ 00101100 CH.467→ 01000011
CH.422→ 00010110 CH.445→ 00101101 CH.468→ 01000100
CH.423→ 00010111 CH.446→ 00101110
