Force 10 Marine - Electrical Connections

Page 6 of 10
ENG-0092.6
3. Connect Line (Hot) to the pigtail wire coming from the High Temperature
Limiter. Connect the Neutral to the unused screw terminal on the heating element
marked with a white “N”.
4. A strain relief should be installed in the hole on the front of the access panel to
secure the AC wire.
5. Ground the water heater using the ground connection screw on the inside of the
access cover. Do not use a switch in the grounding circuit.

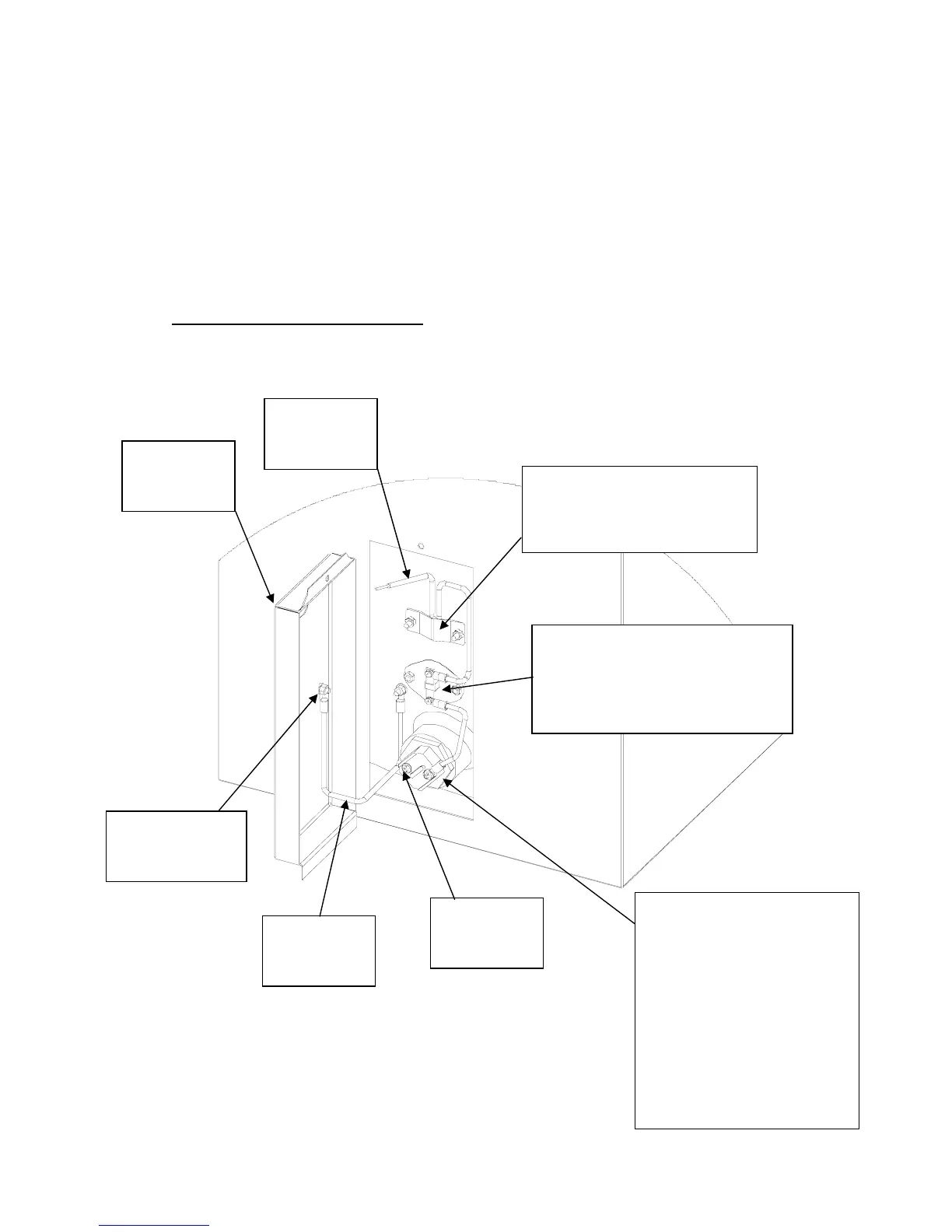

ELECTRICAL CONNECTIONS
CONTROL
ACCESS
COVE
R
THERMOSTAT
-120V / 240V 1500W
(PN# 15214)
(
SHOWN WITH OUT INSULATING COVER)
LINE IN
(HOT)
GROUND
CONNECTION
STUD
GROUND
WIRE
HI TEMP LIMITER
-120V 1500W (PN# 14456)
- 240V 1500W (PN# 14457)
POWER
NUETRAL
HEATER ELEMENT
6, 11, 20 Gallon
-120VAC 1500W
(PN# 14121)
-240VAC 1500W
(PN# 14122)
5 Gallon
-120VAC 1500W
(PN# 141215)
-240VAC 1500W
(PN# 141225)
