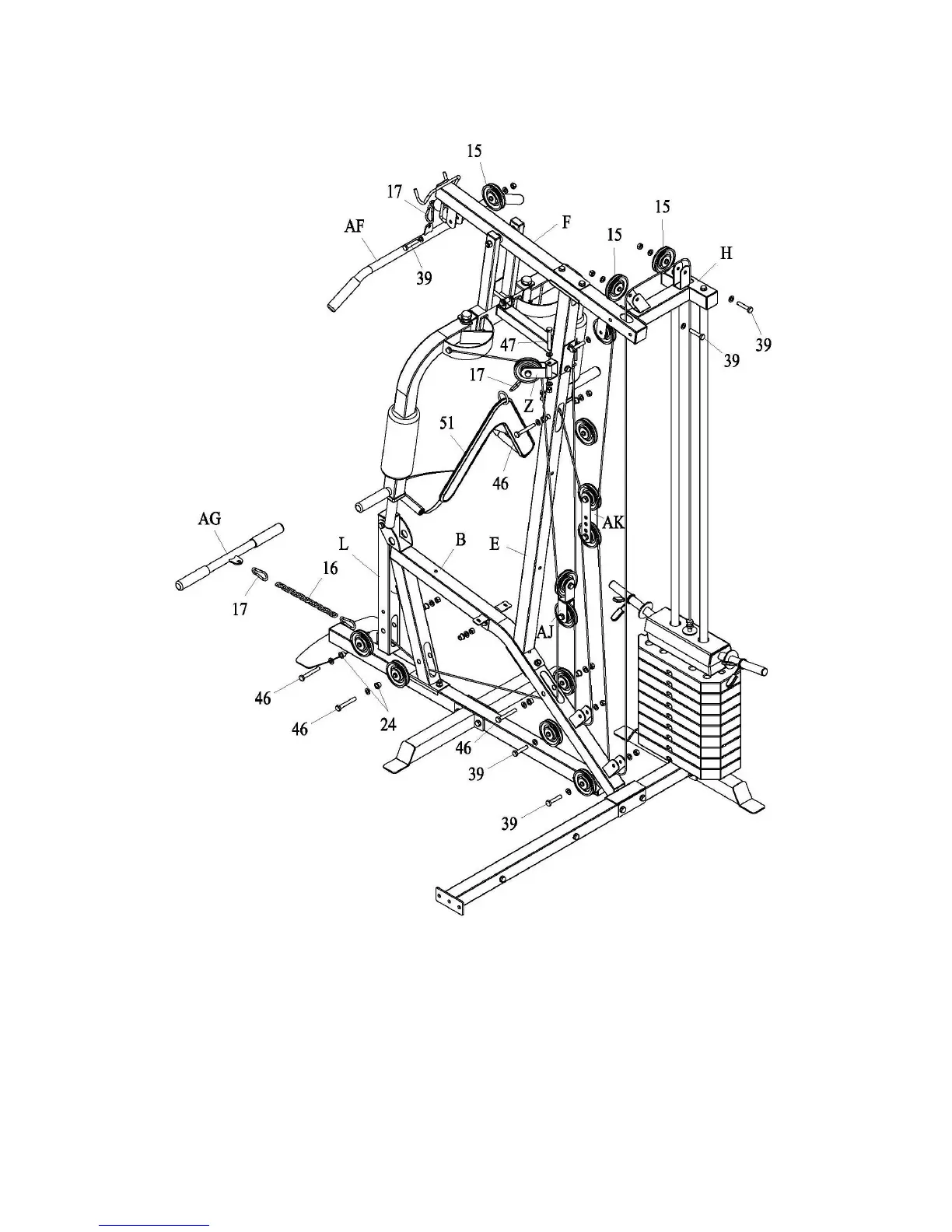

STEP 06
1. Attach two pulley (15) to part (F) with bolt assembly (39).
2. Attach two pulley (15) to part (H) with bolt assembly (39).
3. Attach two pulley (15) to part (Z) with bolt assembly (39).
4. Attach a pulley (15) to part (E) with part (24), bolt assembly (46).
5. Attach four pulley (15) to part (B) with part (24), bolt assembly (46) and (39).
6. Attach a pulley (15) to part (L) with part (24), bolt assembly (46).
7. Attach other pulleys (15) to part (AJ) and (AK) with bolt assembly (39).
