STEP 07
CABLE ASSEMBLY

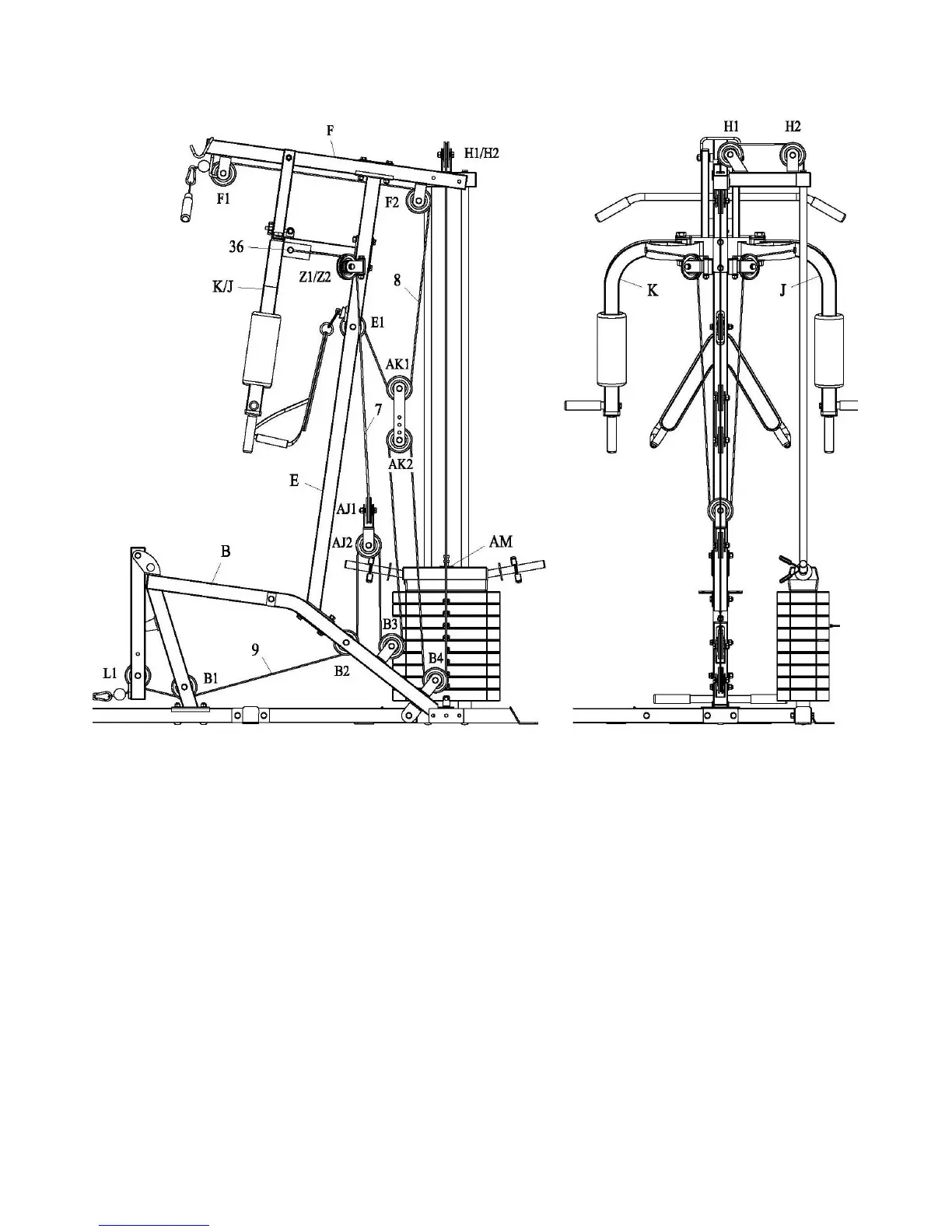

1. Assembly the long cable with no ball (7)
Attach one end of the cable to part (K) with bolt assembly (36). Then thread the other end of
the cable over pulley Z1, down and round pulley AJ1 on upright pulley block (AJ), up and
over pulley Z2, finally attach the end to part (J) with bolt assembly (36).
2. Assembly the cable with one and half ball (8)
Run the end with half ball of the cable (8) through the pulley F1 on part (F), through hole on
part (E),round F2 on part (F), down and round pulley AK1 on part (AK), up and attach the
end to E1 on part (E) with bolt assembly (46) and bushing (24).
3. Assembly the cable with one ball and bolt (9)
Run the end with bolt of the cable (9) through the pulley L1 and B1 on part (L) and part (B),
round the pulley B2 on part (B), up and round pulley AJ2 on part (AJ), under and round
pulley B3 on part (B), up and round pulley AK2 on part (AK), down and round pulley B4 on
part (B), up and through hole on part (F), through pulley H1 and H2 on part (H), then through
hole on part (H), finally through part (AM) and attach the end to the part (AL).
