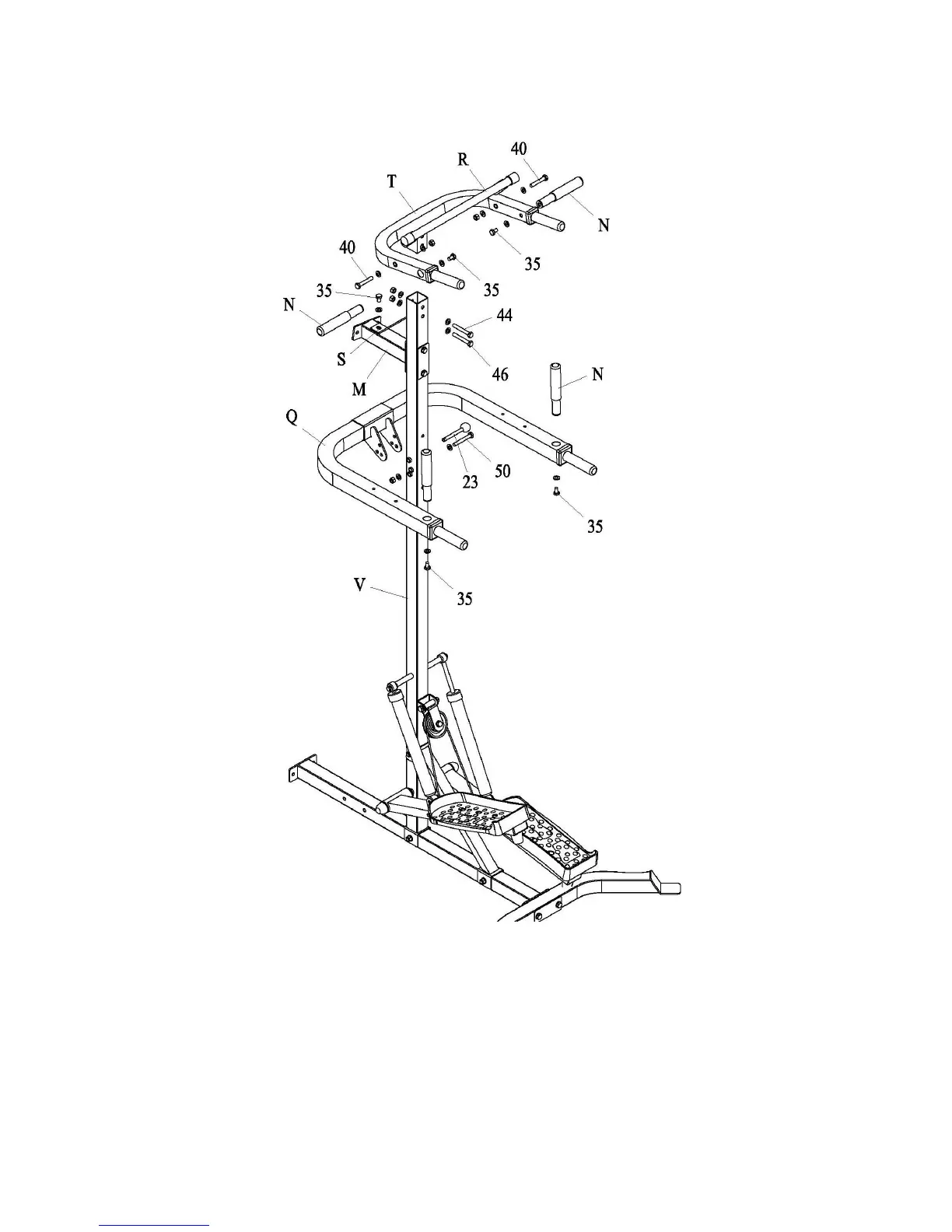

STEP 05
1. Attach part (S) to part (M) with bolt assembly (35).
2. Insert part (T) into port of part (V), secure with bolt assembly (44).
3. Attach part (S) to part (V) and part (T) with bolt assembly (46).
4. Attach part (R) to part (T) with bolt assembly (40).
5. Attach part (Q) to part (V) with bolt assembly (50) and part (23).
6. Attach part (N) to part (Q) and part (T) with bolt assembly (35).
