ASSEMBLY INSTRUCTION

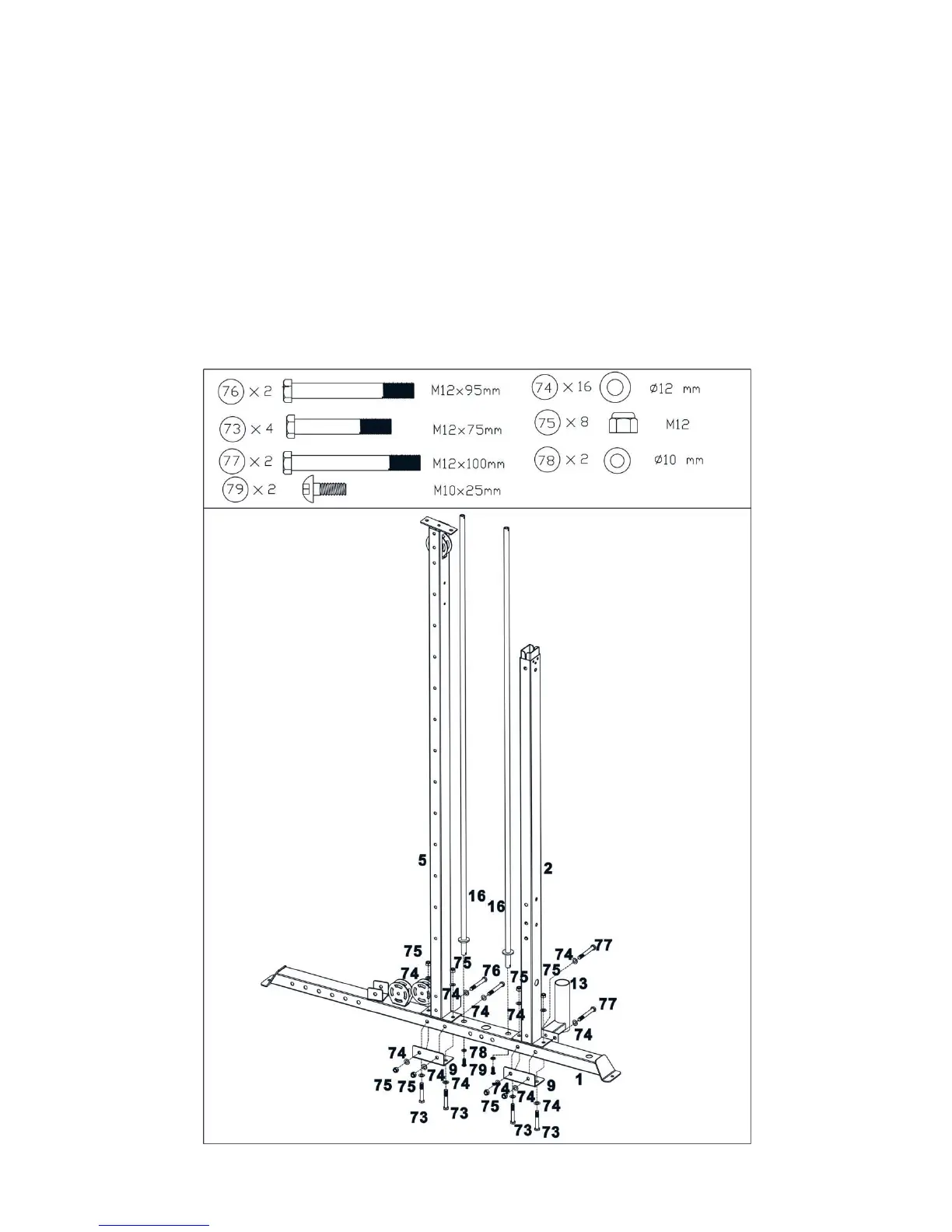

Step 1
A.Attach the right center vertical frame(5#) onto the right stabilizer(1#),Secure them with 1 pc L shape
bracket(9#),2pcs M12*75 Hex bolt(73#),2pcs M12*95 Hex bolt(76#) ,8pcs
φ
12 washer (74#),4pcs M12 Aircraft nut
(75#).
B.Attach the right rear vertical frame(2#) onto the right stabilizer(1#), Secure them together with the barbell
holder(13#)together, with the same way in A and using 1 pc L shape bracket(9#),2pcs M12*75 Hex bolt(73#),2pcs
M12*100 Hex bolt(77#) ,8pcs
φ
12 washer (74#),4pcs M12 Aircraft nut (75#).
C. Insert the 2 pcs guide rods(16#) into the holes and secure them with 2pcs φ10 washer(78#),2pcsM10*25 Allen
bolt (79#) .
