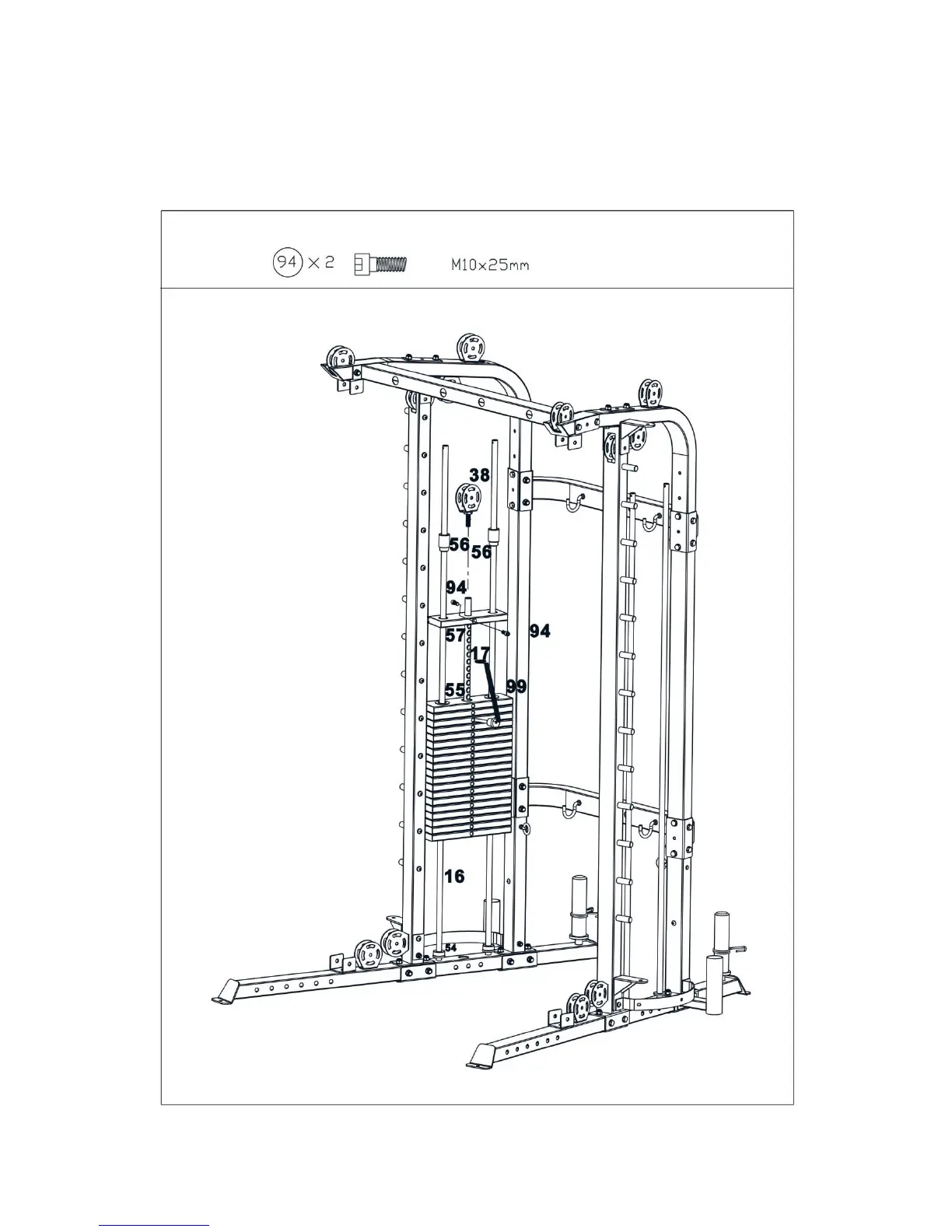

Step 13
A. Place 2pcs rubber bumper(54#) along the guide rod and then place 19 pcs weight plate (55#) along the guide rod,
insert the selector rod (17#) into the hole and place 1 pc weight stem(57#),Secure the weight stem(57#) with the
selector rod(17#) with 2pcs M10*25 Sunk bolt (94#).
insert the selector pin to select the desired weight when exercising.
B. Thread the pulley bracket (38#) to the upper opening of the selector rod (17#).
