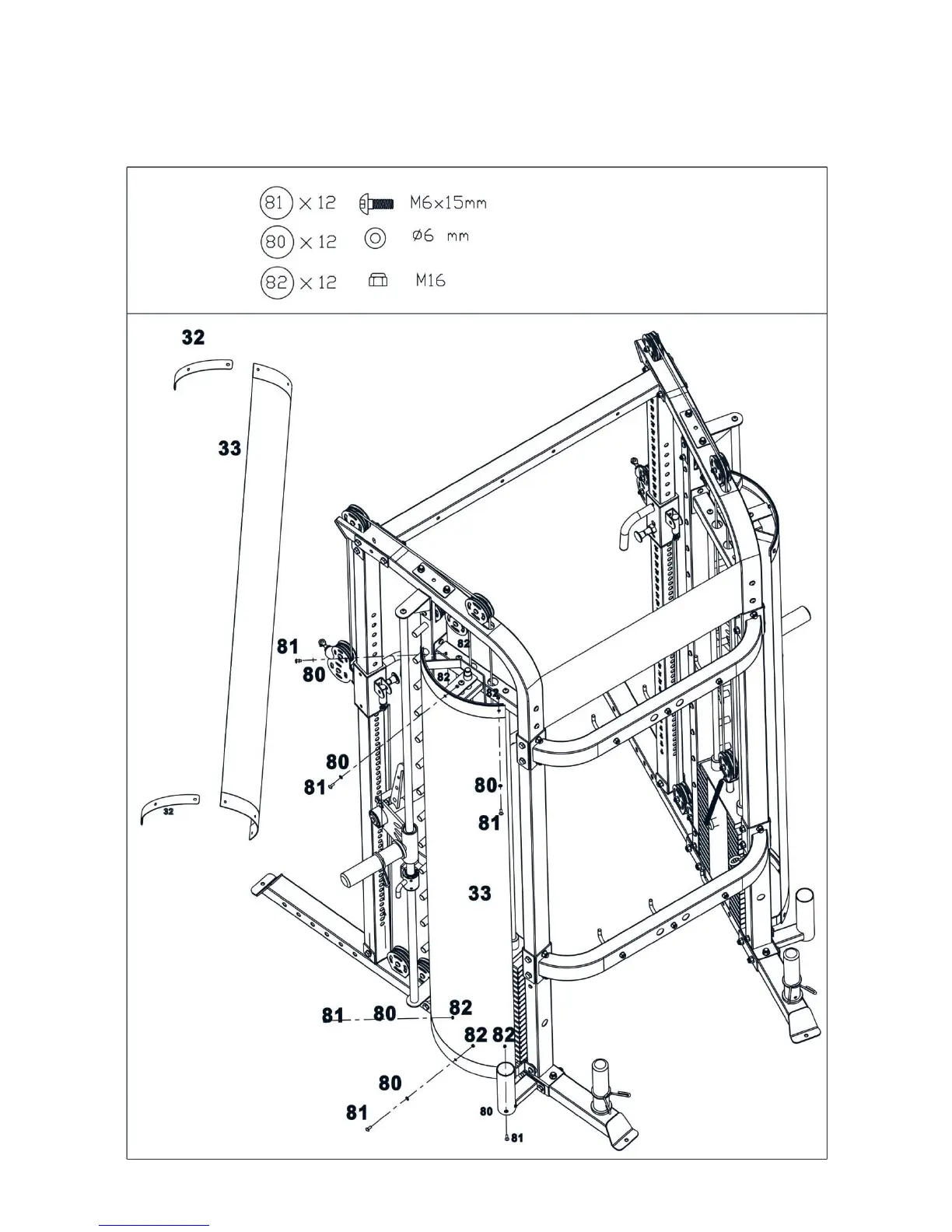

STEP 24
Attach the 2 pcs weight stack inner bracket(32#) through the upper & bottom opening of the weight stack cover (33#)
and secure the weight stack cover to the bracket with 6pcs M6*15 Allen bolt (81#) and 6 pcsφ6 washer (80#) and
6pcs M6 Aircraft nut(82#).
