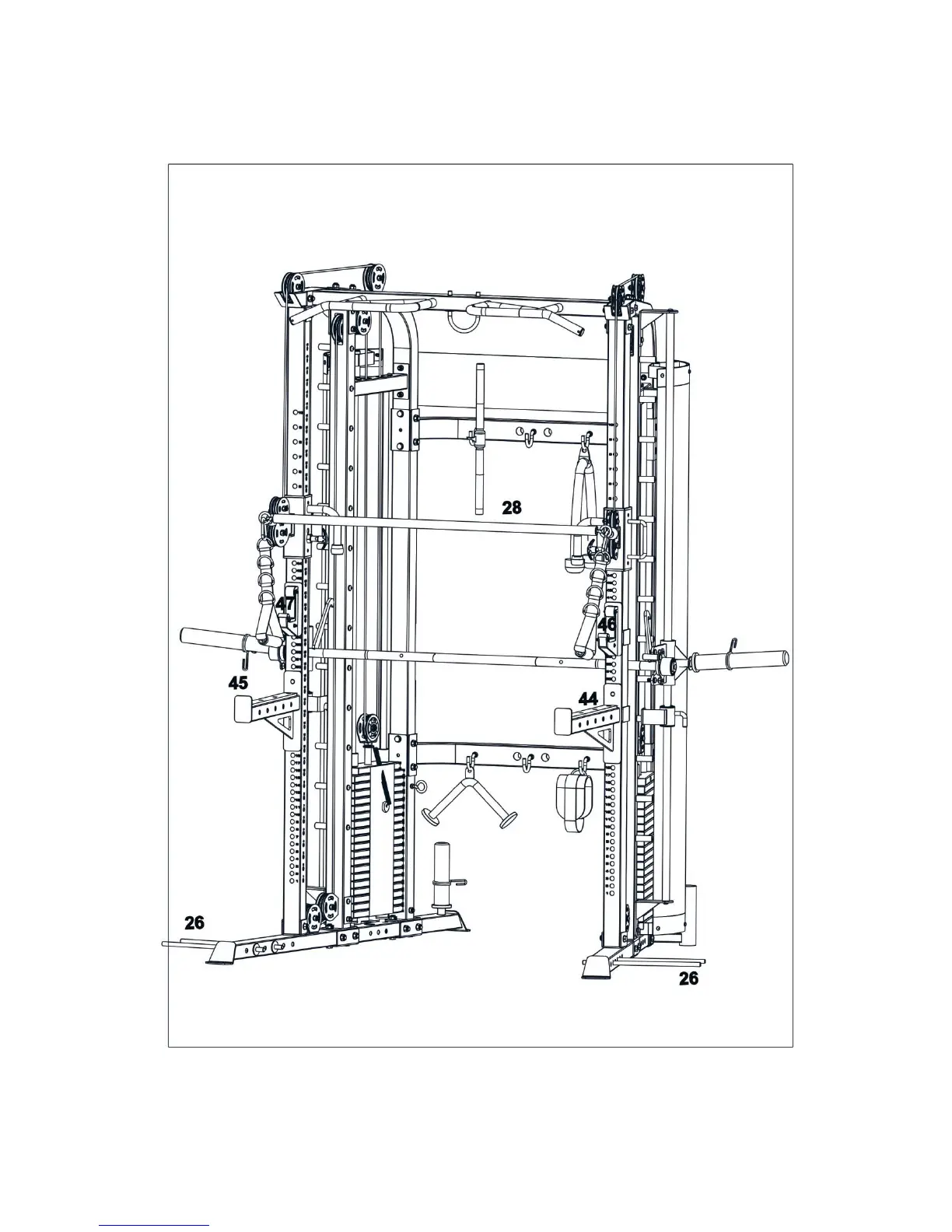

STEP 28
A. Attach the left& right safety bar(44#&45#) into the holes as the diagram shows.
B. Attach the left& right crunch (46#&47#) into the holes as the diagram shows.
C. Attach the 4pcs pin (26#) into the holes of the stabilizer.
