Force USA F-G6 - Page 22

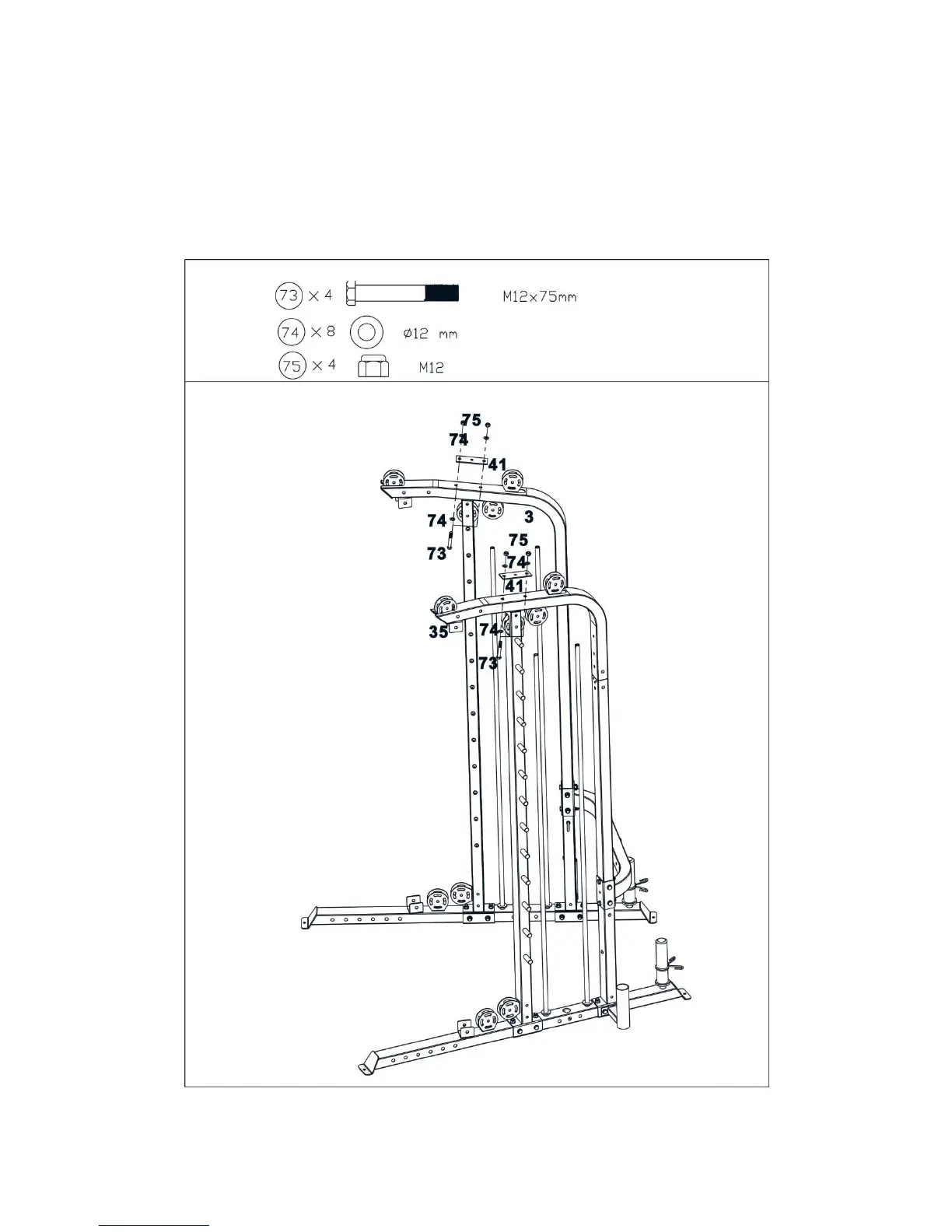

Step 8
A.Attach the left upper frame (3#) onto left center vertical frame(36#) ,Secure them with 2pcs M12*75Hex bolt
(73#),4pcs φ12 washer (74#),1 pc bracket (41#) and 2 pcs M12 Aircraft nut (75#).
B. Install the right upper frame(35#) with the same way in A.
