Step 10

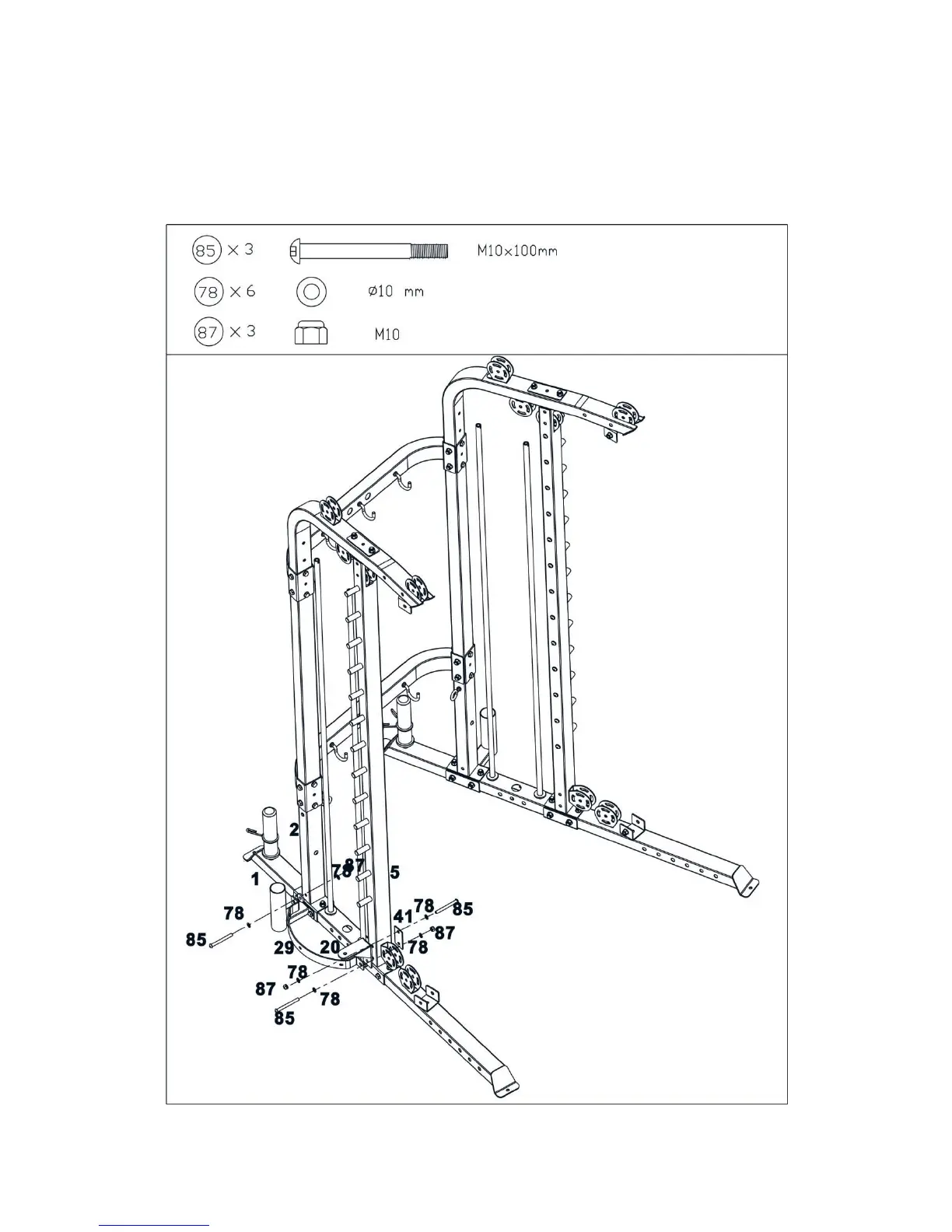

Attach the weight stack cover bracket (29#) as the diagram shows , secure it with the triangle bracket(20#) using 2
pcs M10*100 Allen bolt(85#),4pcs
φ
10 washer (78#) , 1 pc bracket (41#),and 2pcs M10 Aircraft nut(87#).
Secure another end with the 1 pc M10*100 Allen bolt(85#),2pcs
φ
10 washer (78#) , 1 pc M10 Aircraft nut(87#).
