Force USA F-G6 - Page 29

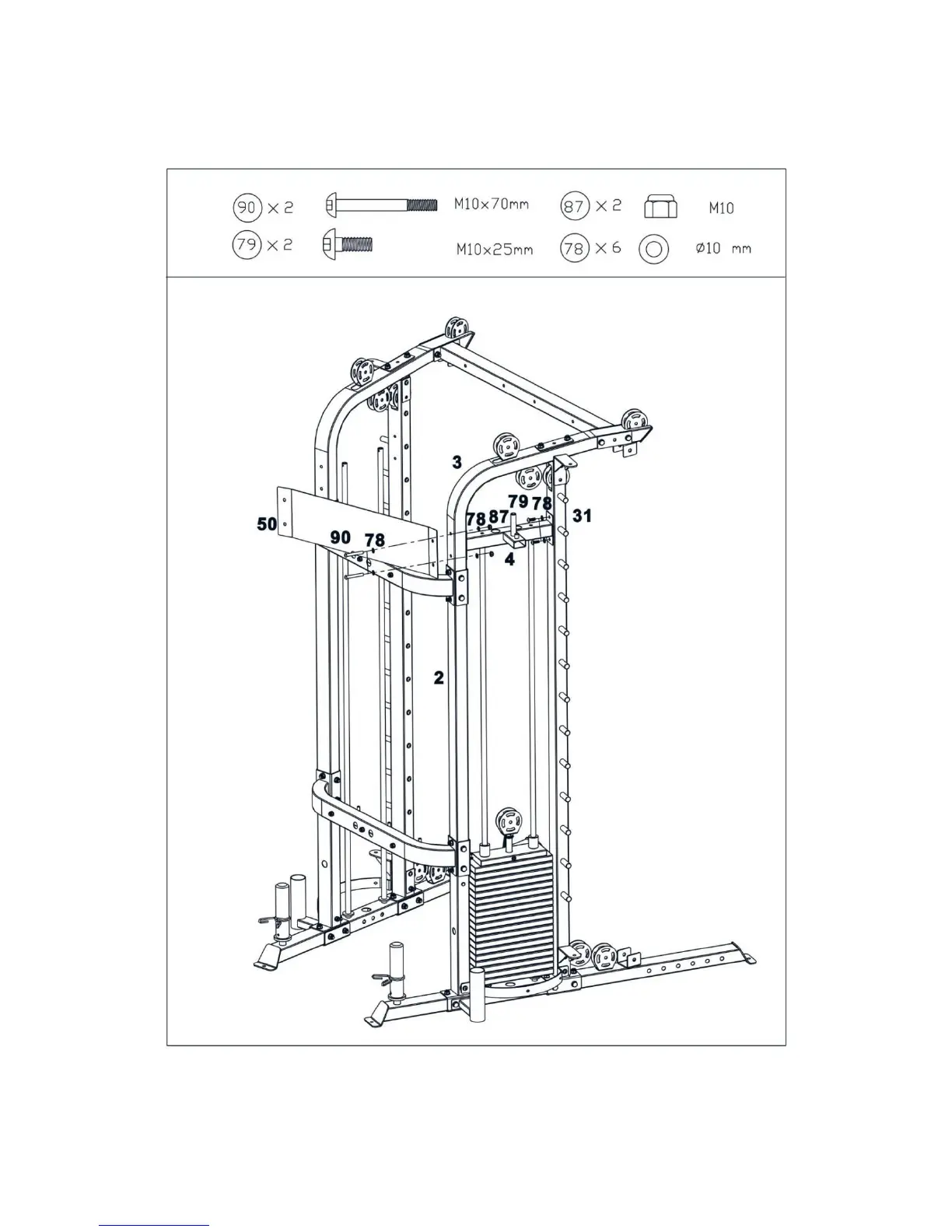

Step 15
Attach the short connection frame(4#)as the diagram shows. Attach the LOGO board (50#) together and secure
them with 2pcs M10*70 Allen bolt(90#),6pcs
φ
10 washer(78#),2pcs M10 Aircraft nut(87#).2pcs M10*25 Allen bolt
(79#).
