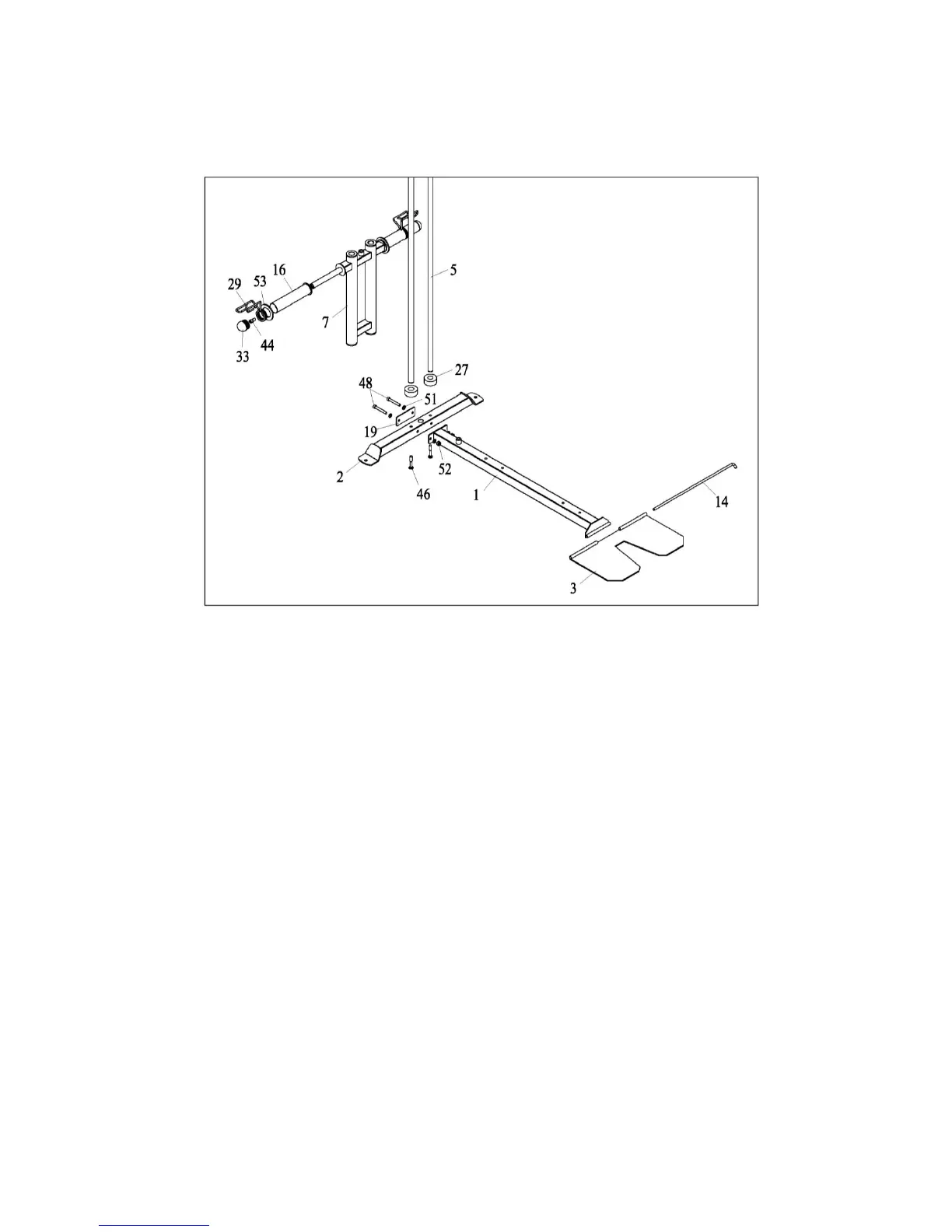

STEP 01
1.Insert hard chromium shaft (5) into hole on lower cross-frame (2), secure with square neck
screws M10*60 (46).
2.Attach lower boom-unit (1) and reinforcement plate (19) to lower cross-frame (2) with screws
M10*75 (48), washers 10 (51) and lock nuts M10 (52).
3.Attach metal plate (3) to lower boom-unit (1) with connecting shaft (14).
4.Slide rubber donuts (27) and weight-sled (7) onto hard chromium shaft (5).
5.Slide plate adapter (16) onto bar on weight-sled (7), secure with screws M10*25 (44).
6.Slide rubber ring (53) and large spring clip (29) onto plate adapter (16). Insert round plug (33)
into port of plate adapter (16).
