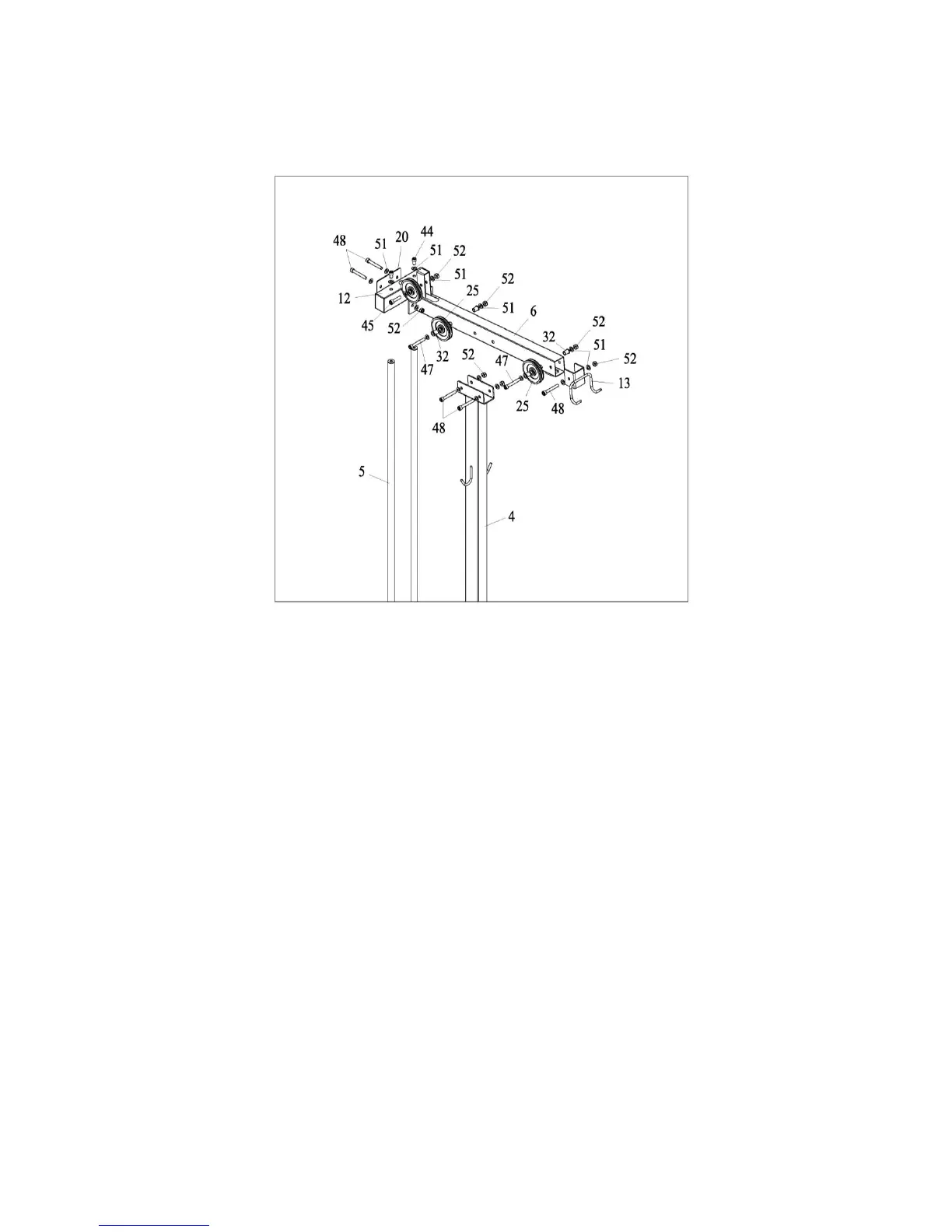

STEP 03
1.Attach three pulleys (25) and four bushings (32) to top beam (6) with screws M10*70 (47), screw
M10*50 (45), washers 10 (51) and lock nuts M10 (52).
2.Attach hook (13) to top beam (6) with screw M10*75 (48), washers 10 (51) and lock nut M10
(52).
3.Attach top cross beam (12) and wide reinforcement plate (20) to top beam (6) with screws M10*75
(48), washers 10 (51) and lock nuts M10 (52).
4.Attach top beam (6) to upright-unit (4) with screws M10*75 (48), washers 10 (51) and lock nuts
M10 (52).
5.Attach top cross beam (12) to hard chromium shaft (5) with screws M10*25 (44) and washers 10
(51).
