Force F-X15-V2 - Page 34

110
49
25
103
115
103
49
25
85
49
38
25
112
40
25
37
114
25
39
111
112
25 38
49
109
113
110
109 Sliding Sleeve Left Welding Part
1
110
Bushing
75-89
2
111 Internal Thread Shaft
Φ19.8*50
1
112
Powder Sleeve
φ33×φ29×φ20×18
2
49
Hexagon Bolt
M10×25
4
38
Spring Washer
φ10
2
25
Flat Washer
φ10
10
113
Three Pulley Weldment
1
37
Pulley (96mm)
φ92
2
114
Pulley
φ60
1
39
Hexagon Bolt
M10×45
3
40
Lock Nut
M10
3
115
Handgrip Tube
φ25×2×138
1
103
Two Layer Spring Nut φ23-M10
2
85 Umbrella Pin
φ12×M20×40 1
Key No. Description Note
Quantity

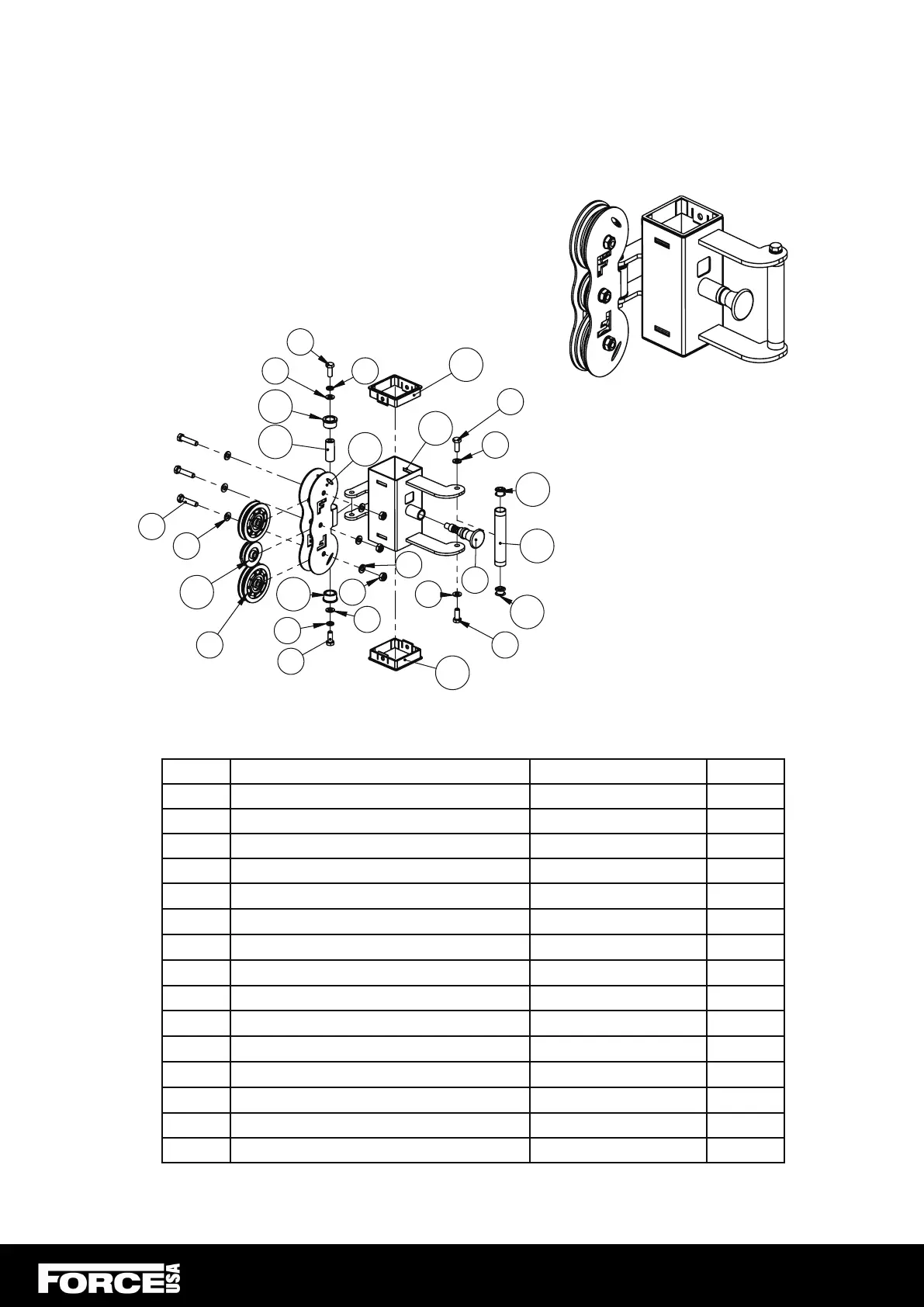

EXPLODED DIAGRAM
16.Pulley Slider - Left, 1 pc
33
F-X15-V2
