Battery backup Assembly (optional)
Option 1 - Top Fixed

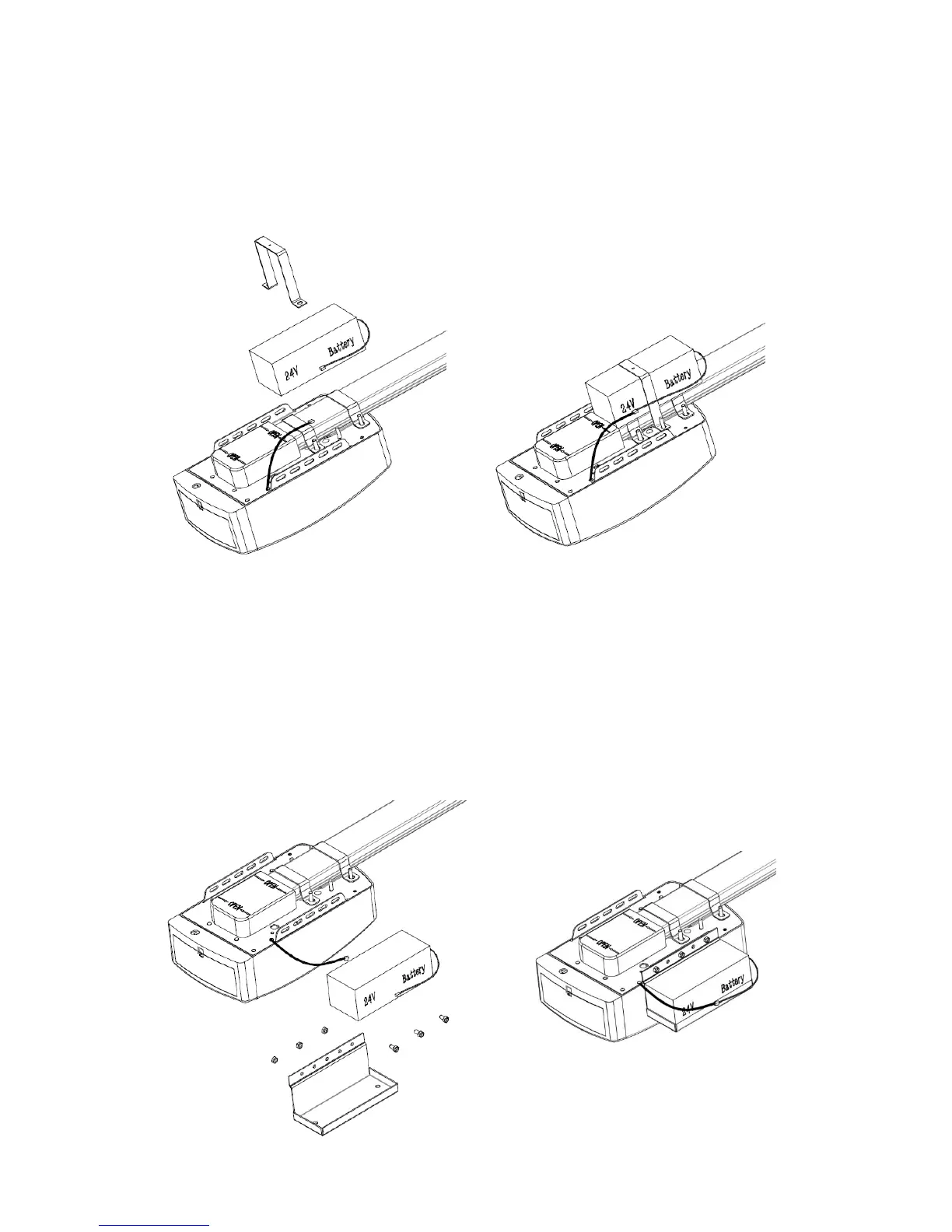

STEP1 (Fig.11)
Assemble the battery & battery bracket like the photo, fix by screws supplied.
STEP2 (Fig.12)
Join the battery to opener, find the Fig.12.
Figure 11 Figure 12
Option 2 - Side Fixed
STEP1 (Fig.13)
Assemble the battery & battery bracket like the photo, fix by screws supplied.
STEP2 (Fig.14)
Join the battery to opener, find the Fig.14.
Figure 14
Figure 13
To Next Page
