ASSEMBLY INSTRUCTION
Tools Required for Assembling the Machine: Two Adjustable Wrenches.
NOTE: It is strongly recommended that two or more people assemble this machine to avoid
possible injury.

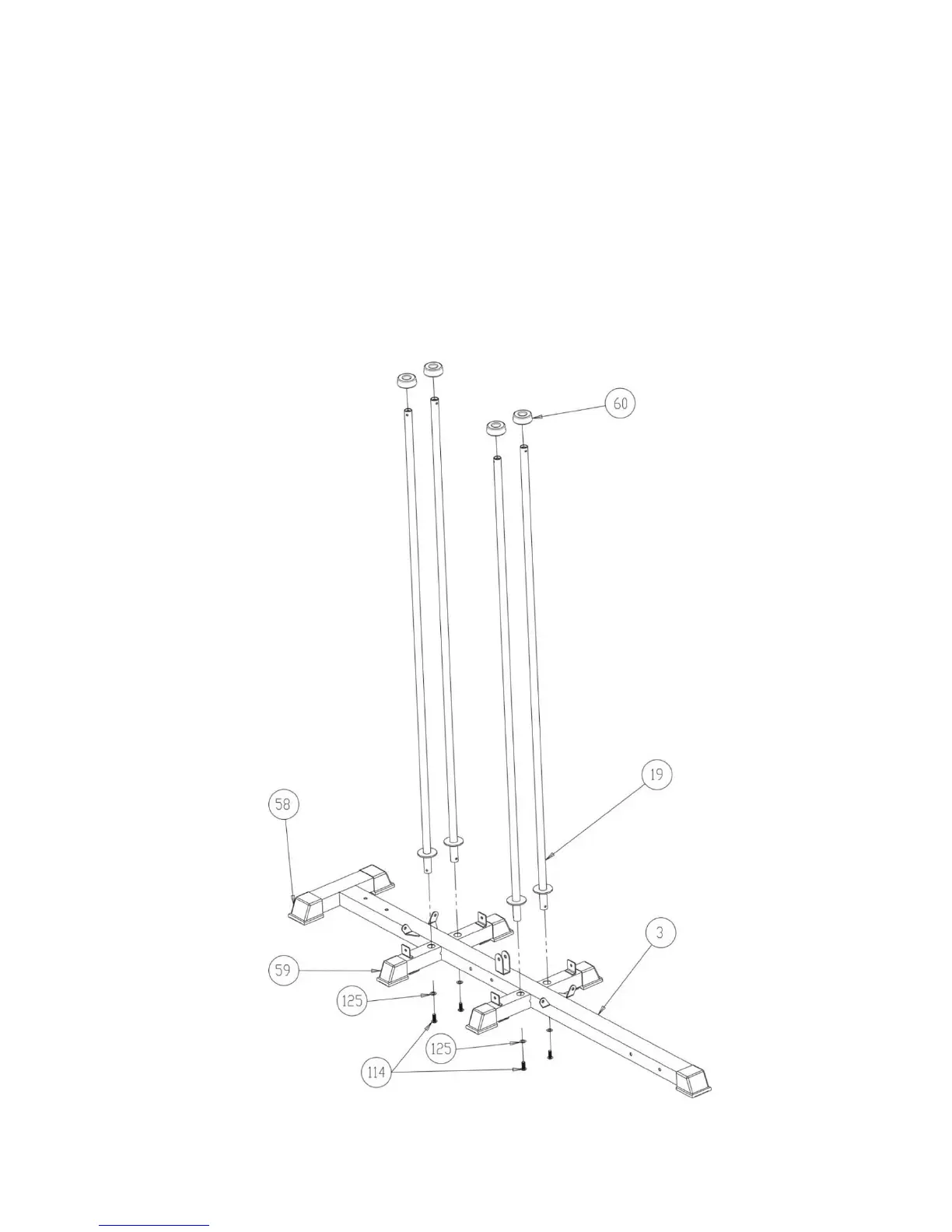

Step 1 (See Diagram)
A. Insert four Guide Rods (#19) into the holes on the Main Base Frame. Secure each of them with one
M10x25mm Allen Bolt (#114) and one Ø10mm Washer (#125) from bottom.
B. Slide four Round Rubber Bumpers (#60) down to four Guide Rods (#19).
Diagram1
7
