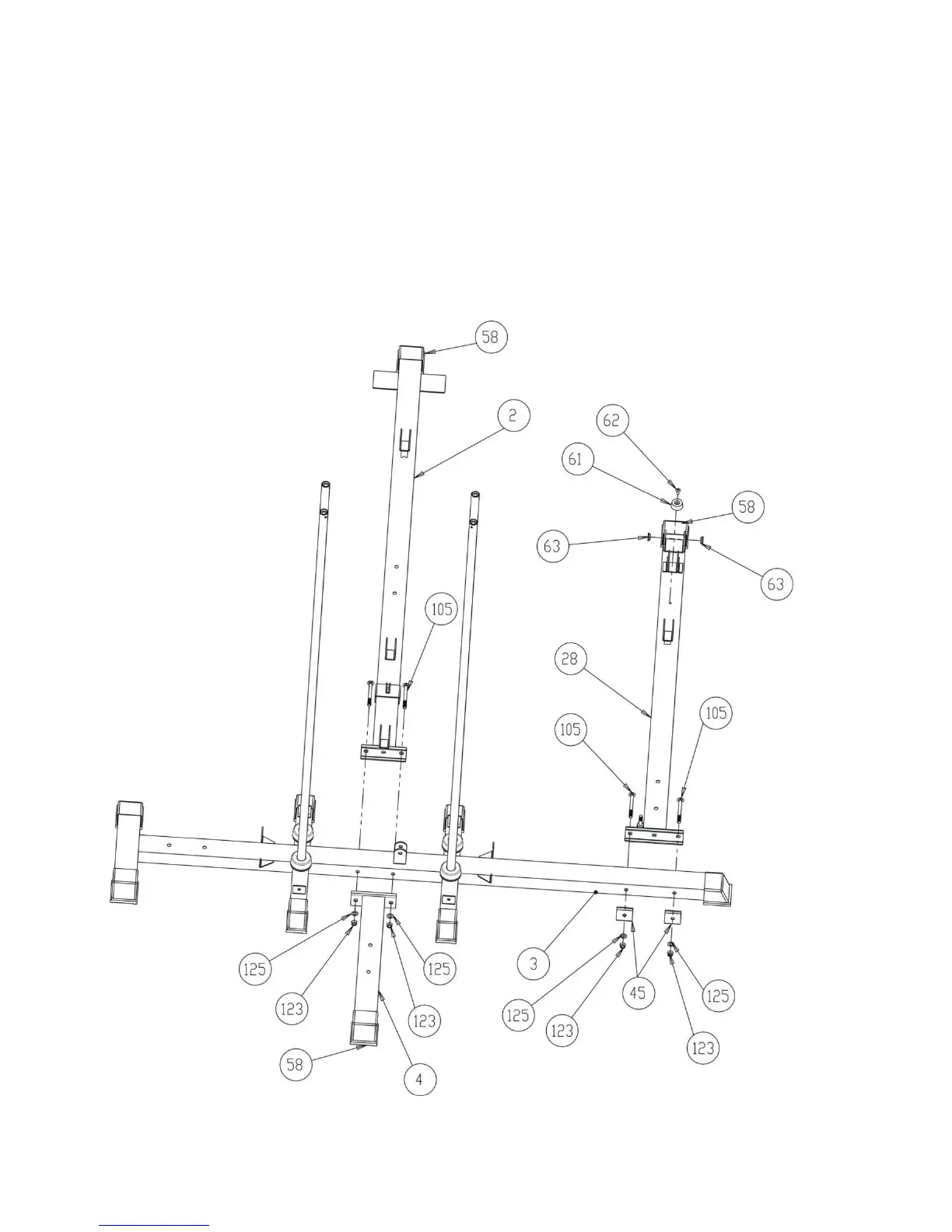

Step 2 （See diagram 2）
A. Attach Base Frame A (#2) and Base Frame B (#4) to each side of the Main Base Frame (#3), Line up
the holes and secure with two M10x90mm Carriage Bolts (#105), two Ø10mm Washers (#125) and
M10 Aircraft Nuts (#123).
B. Attach Base Frame C (#28), (Attention the direction from the Main Base Frame (#3), Line up the holes
and secure with two M10x90mm Carriage Bolts (#105), two Single Brackets (#45), two Ø10mm
Washers (#125) and M10 Aircraft Nuts (#123).
Diagram 2
8
To Next Page
