ForceDoor BASE 35 - Page 36

34

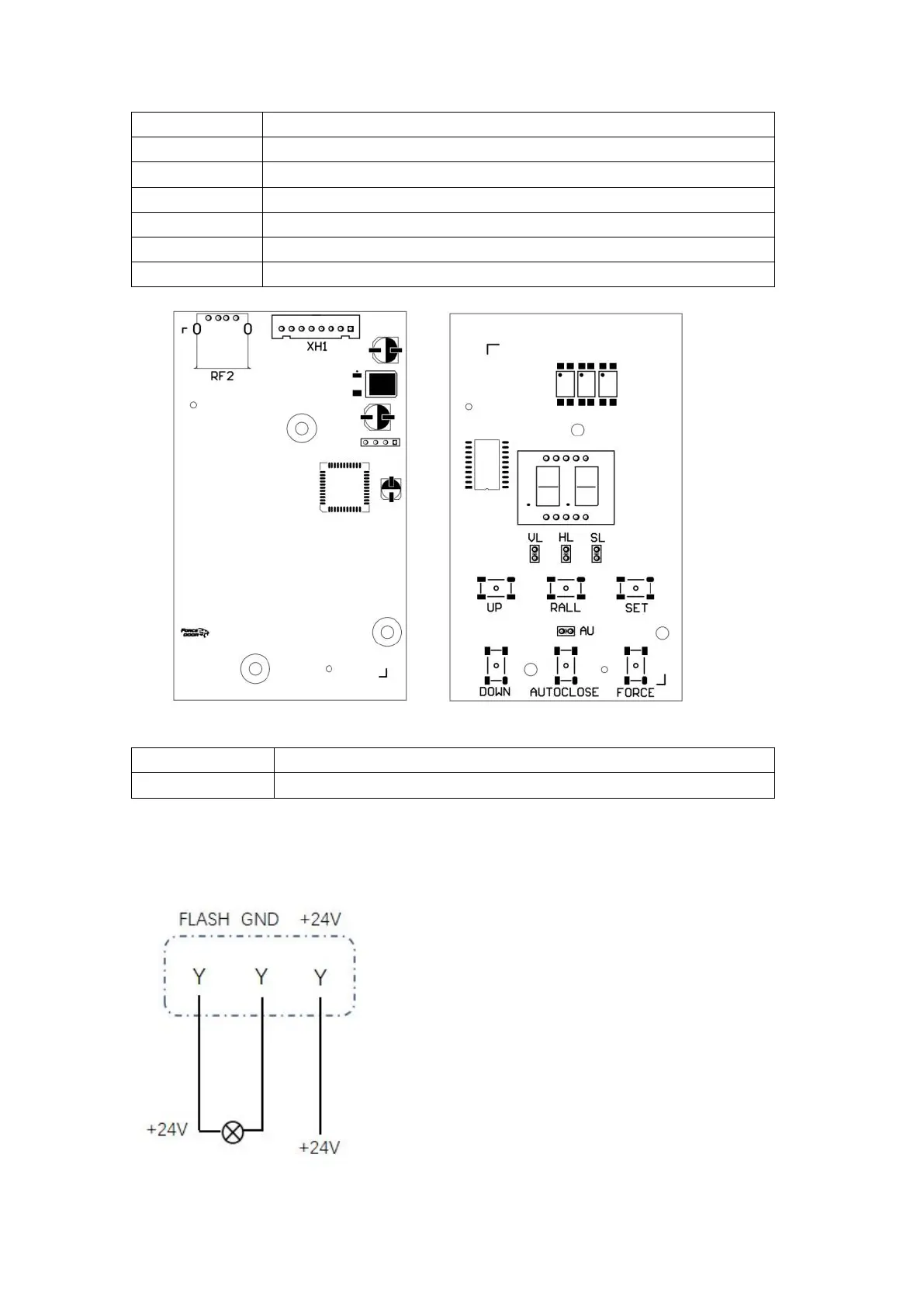

BAT+
Lead-acid battery input terminal
RJ11
External wired wall control connection
WIFI1
WIFI control terminal
LED1
Courtesy light terminal
XH08
Safety terminal
XH09
Display board terminal
CLUTH
Rear clutch protection terminal
XH1
Display board terminal
RF2
Transmitter & Receiver module terminal
XH02 Door drive output terminal
