ForceDoor BASE 35 - Function Wiring Diagram

33

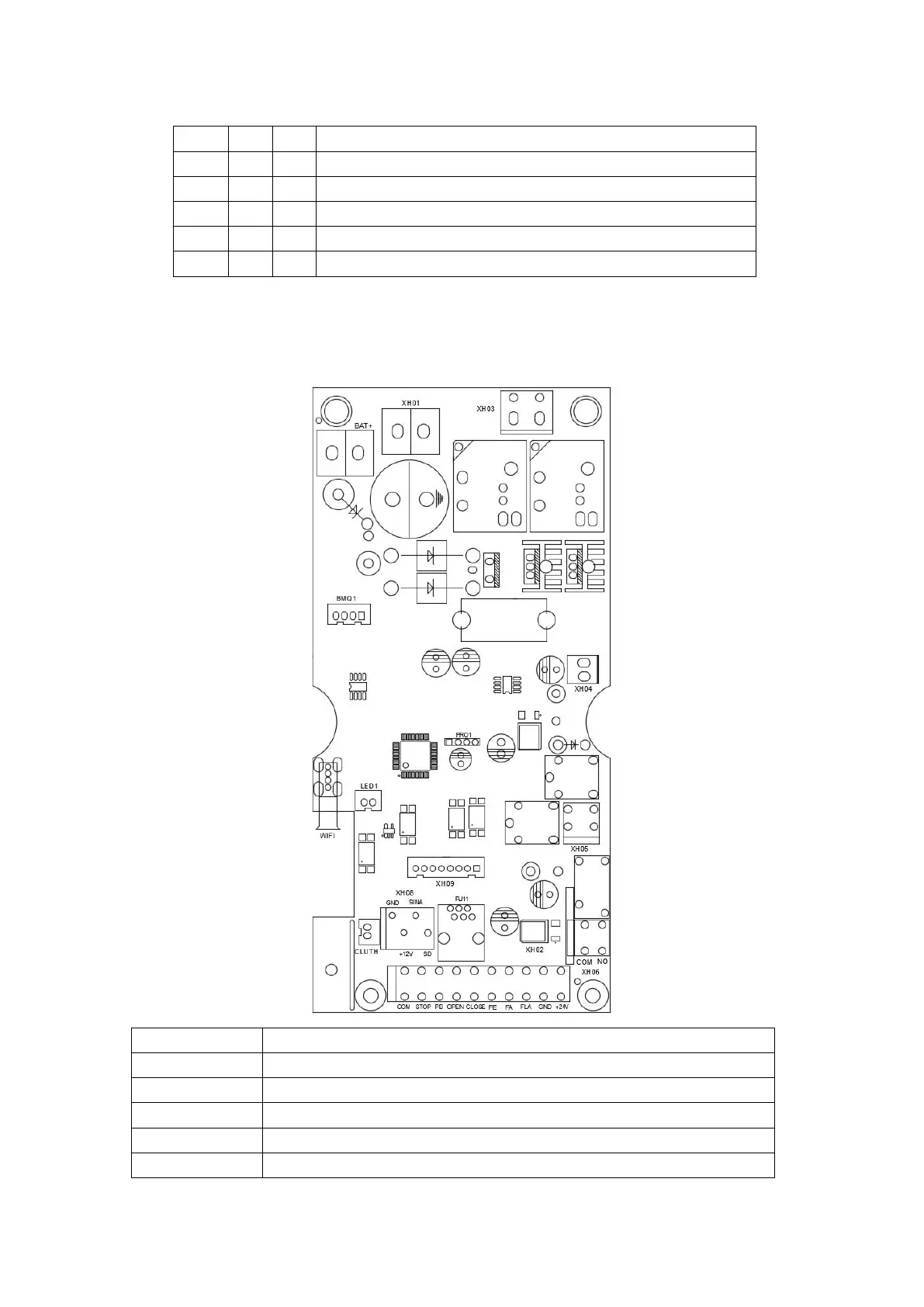

FUNCTION WIRING DIAGRAM
XH01
DC24V Power input terminal
XH02
External function terminal
XH03
Gear motor power supply terminal
XH04
DC24V Input terminal
XH05
Electronic lock terminal
XH06
Relay module output terminal
S1
S2
S3
Function Description
1
1
1
Standard function (Factory default)
0
1
1
Ignore the key value function
1
0
1
Multiple function key 1
1
1
0
Multiple function key 2
0
0
1
Multiple function key 3
