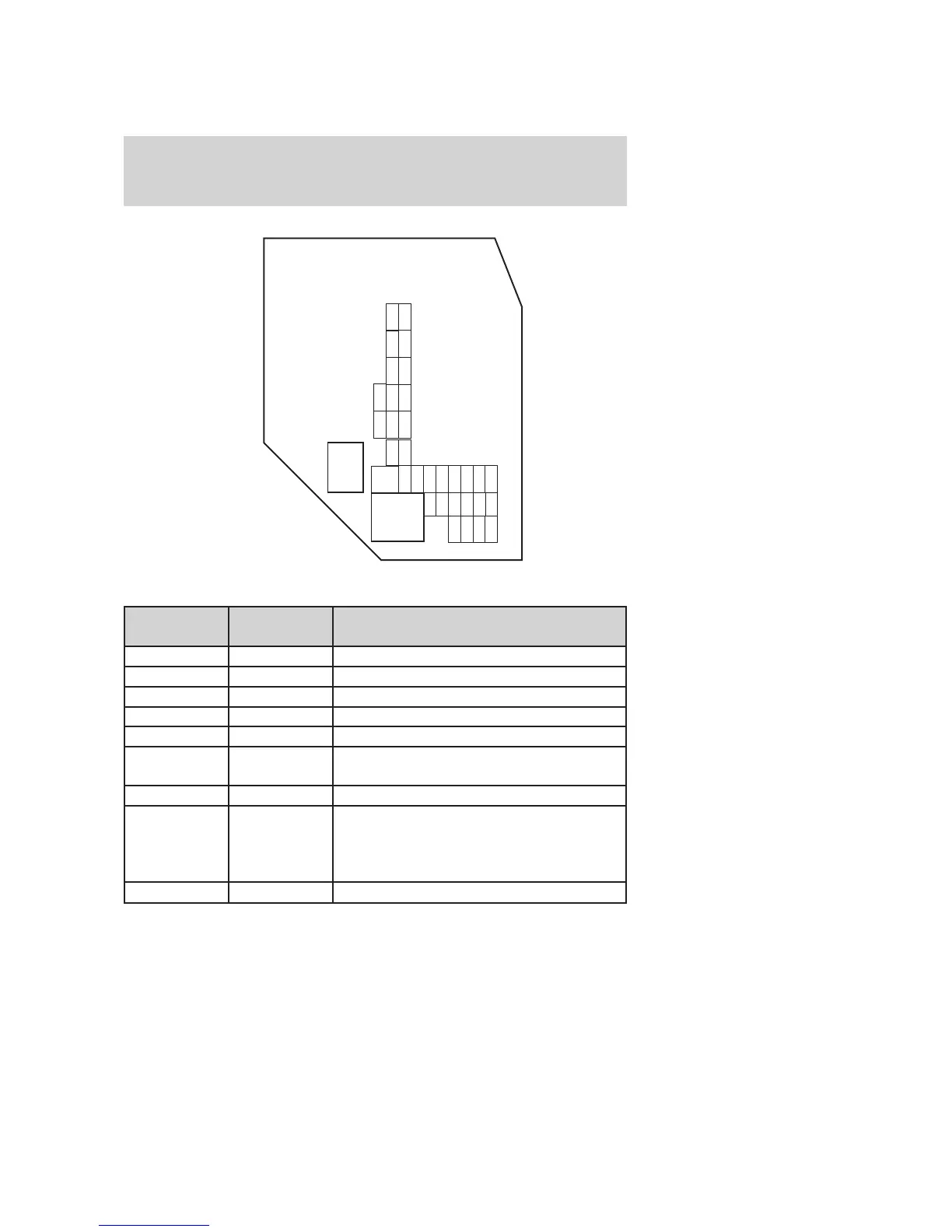

The fuses are coded as follows:
Fuse/Relay
Location
Fuse Amp
Rating
Passenger Compartment Fuse Panel
Description
1 5A Instrument panel dimmer switch
2 10A Trailer tow park lamps
3 10A Right low beam headlamp
4 10A Left low beam headlamp
5 5A Windshield wiper module (RUN/ACCY)
6 10A Radio (RUN/ACCY), Door switch
illumination
7 Not used
8 10A Restraints Control Module (RCM), PADI
(Passenger Air bag Deactivation
Indicator), Occupant classification sensor
(OCS)
9 5A Cluster air bag indicator
15
25
2
1
3
4
5
6
8
9
11
12
7
10
13
14
17
18
20
21
22
23
24
16
19
27
28
29
30
31
26
32
33
34
35
2009 Ranger (ran)
Owners Guide, 2nd Printing
USA (fus)
Roadside Emergencies
184
