If the battery has been disconnected and reconnected, refer to the
Battery section of the Maintenance and Specifications chapter.
2.3L engine (if equipped)

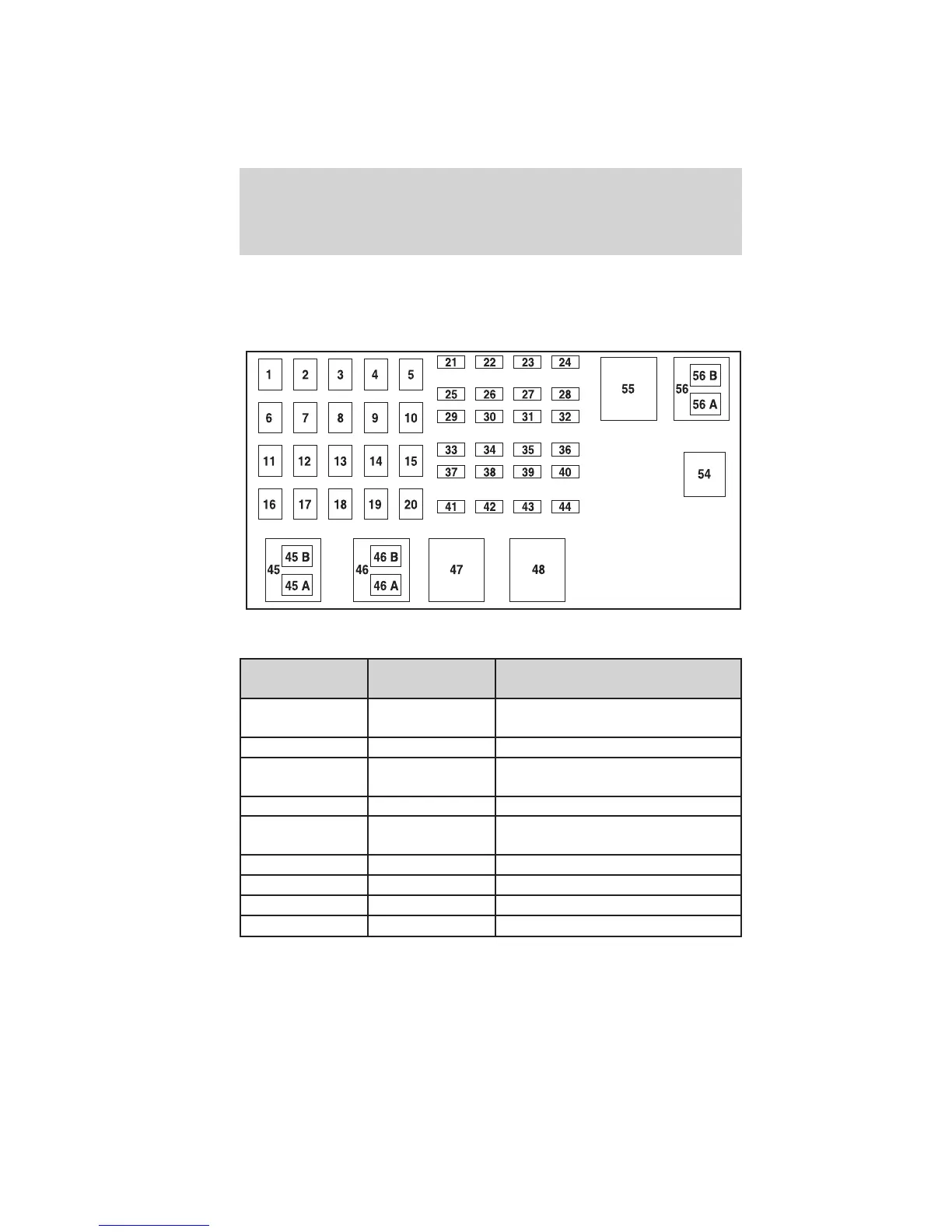

The high-current fuses are coded as follows:
Fuse/Relay
Location
Fuse Amp
Rating
Power Distribution Box
Description
1 40A** Passenger compartment fuse
panel
2 — Not used
3 40A** Passenger compartment fuse
panel
4 — Not used
5 50A** Passenger compartment fuse
panel
6 — Not used
7 30A** Starter solenoid
8 — Not used
9 40A** Ignition switch
Roadside Emergencies
186
2011 Ranger (ran)
Owners Guide, 1st Printing
USA (fus)
