4.0L engines (if equipped)

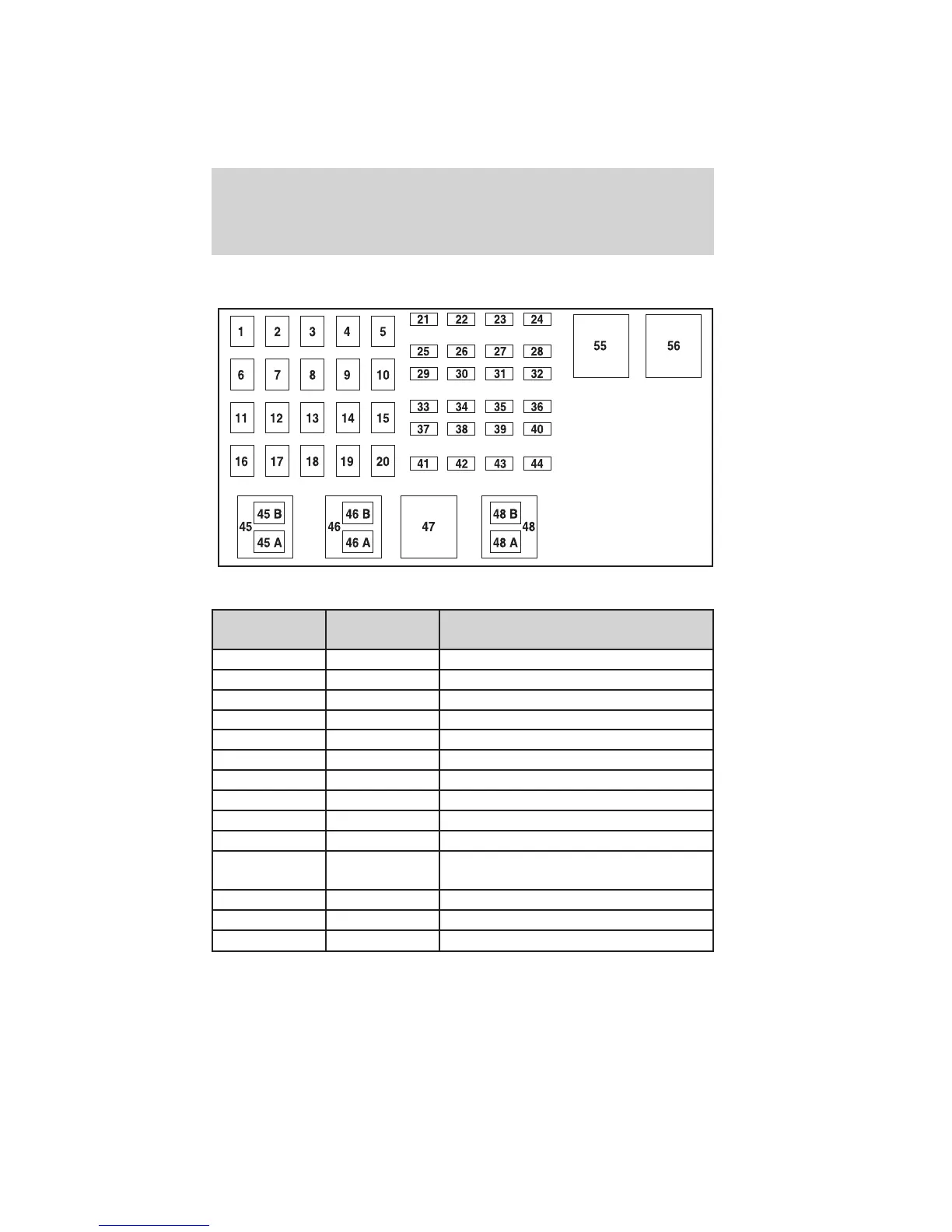

The high-current fuses are coded as follows:
Fuse/Relay
Location
Fuse Amp
Rating
Protected Circuits
1 40A** Passenger compartment fuse panel
2 — Not used
3 40A** Passenger compartment fuse panel
4 — Not used
5 50A** Passenger compartment fuse panel
6 — Not used
7 30A** Starter solenoid
8 — Not used
9 40A** Ignition switch
10 — Not used
11 30A** Powertrain control module (PCM)
relay
12 — Not used
13 30A** Blower motor (climate control)
14 — Not used
Roadside Emergencies
189
2011 Ranger (ran)
Owners Guide, 1st Printing
USA (fus)
