2. Raise the inboard side of the fuse box
from the cradle.
3. Move the fuse box toward the center
of the engine compartment.
4. Pivot the outboard side of the fuse box
to access the bottom side.

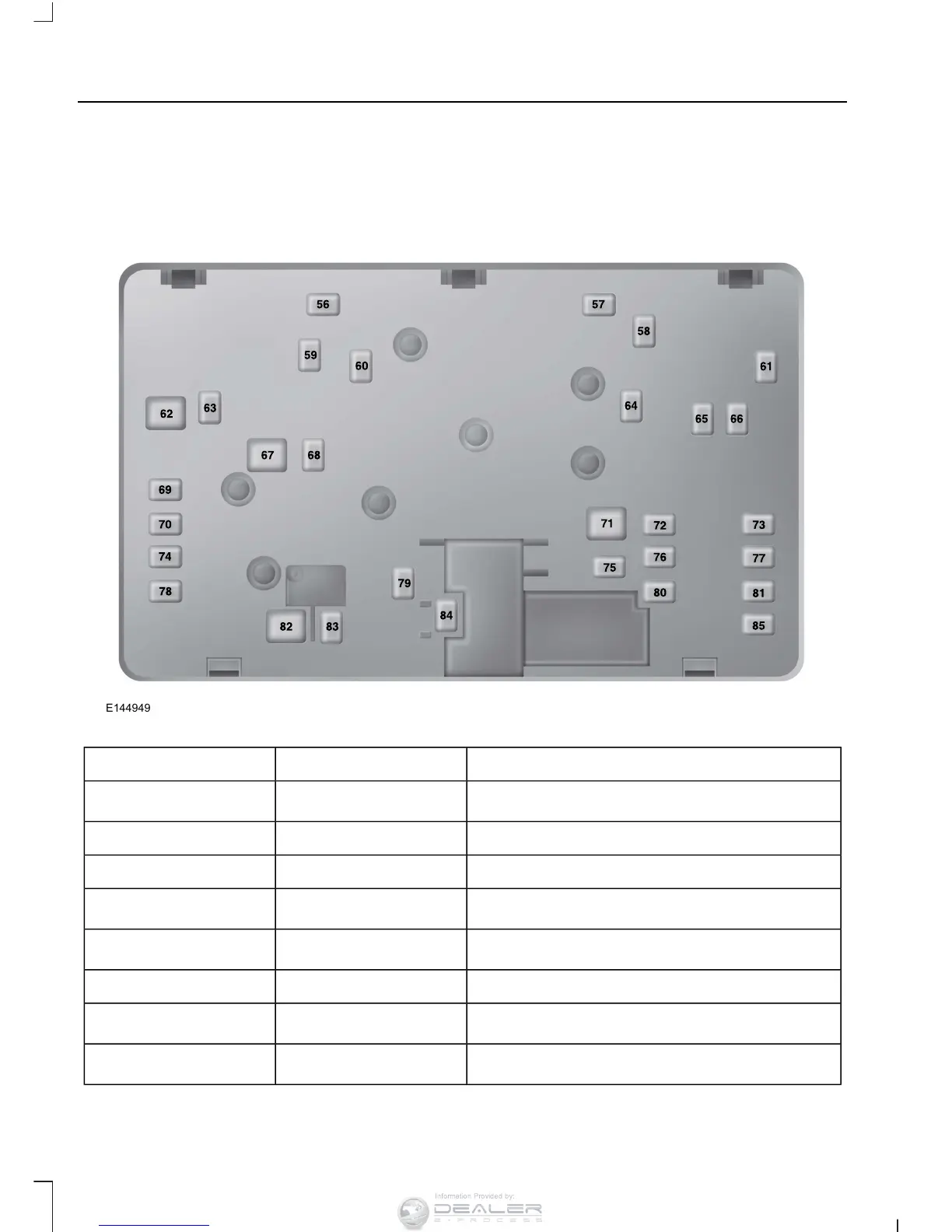

E144949
Protected componentsFuse amp ratingFuse or relay number
Fuel pump feed
30A
1
56
Not used—57
Not used—58
500W Electronic fan 3
30A
1
59
500W Electronic fan 1
30A
1
60
Not used—61
Body control module 1
50A
2
62
500W Electronic fan 2
20A
1
63
230
Fusion (CC7) , enUSA
Fuses
