Protected componentsFuse amp ratingFuse or relay number
Fuel system.10AF46
Rear 15 relay.Power relayR1
Heated rear window.Mini relayR2
Fuel door (C-MAX Energi).Micro relayR3
Not used.—R4
Not used.—R5
Rear wiper.Micro relayR6

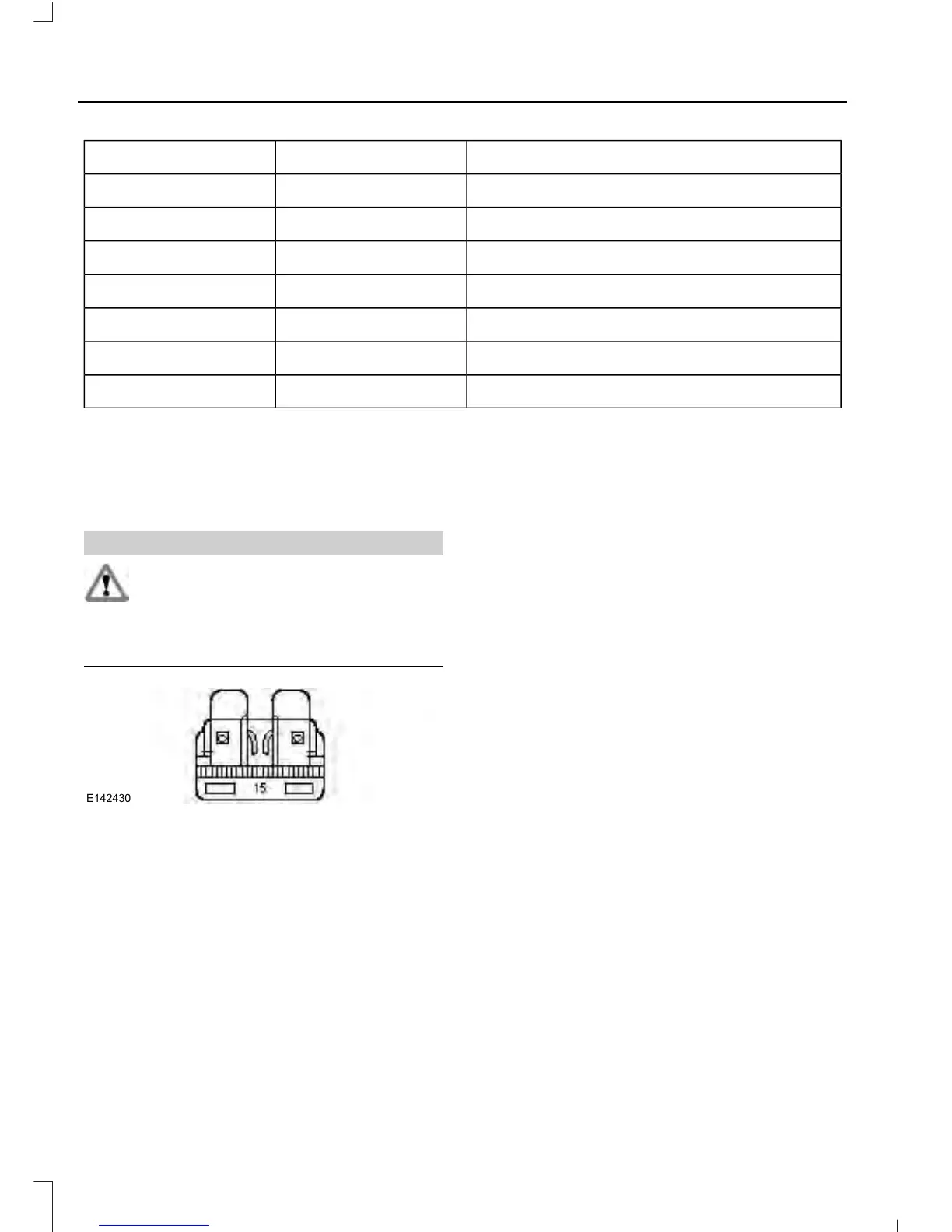

CHANGING A FUSE
Fuses
WARNING
You must replace a failed fuse with
one that has the specified amperage
rating. If you use a fuse with a higher
amperage rating, you may cause severe
wire damage and may start a fire.
A fuse may fail if electrical components in
the vehicle are not properly working. A
broken wire inside the fuse indicates a
failed fuse. Check the appropriate fuses
before replacing any electrical
components.
212
C-MAX (CCG) Canada/United States of America, enUSA, Second Printing
