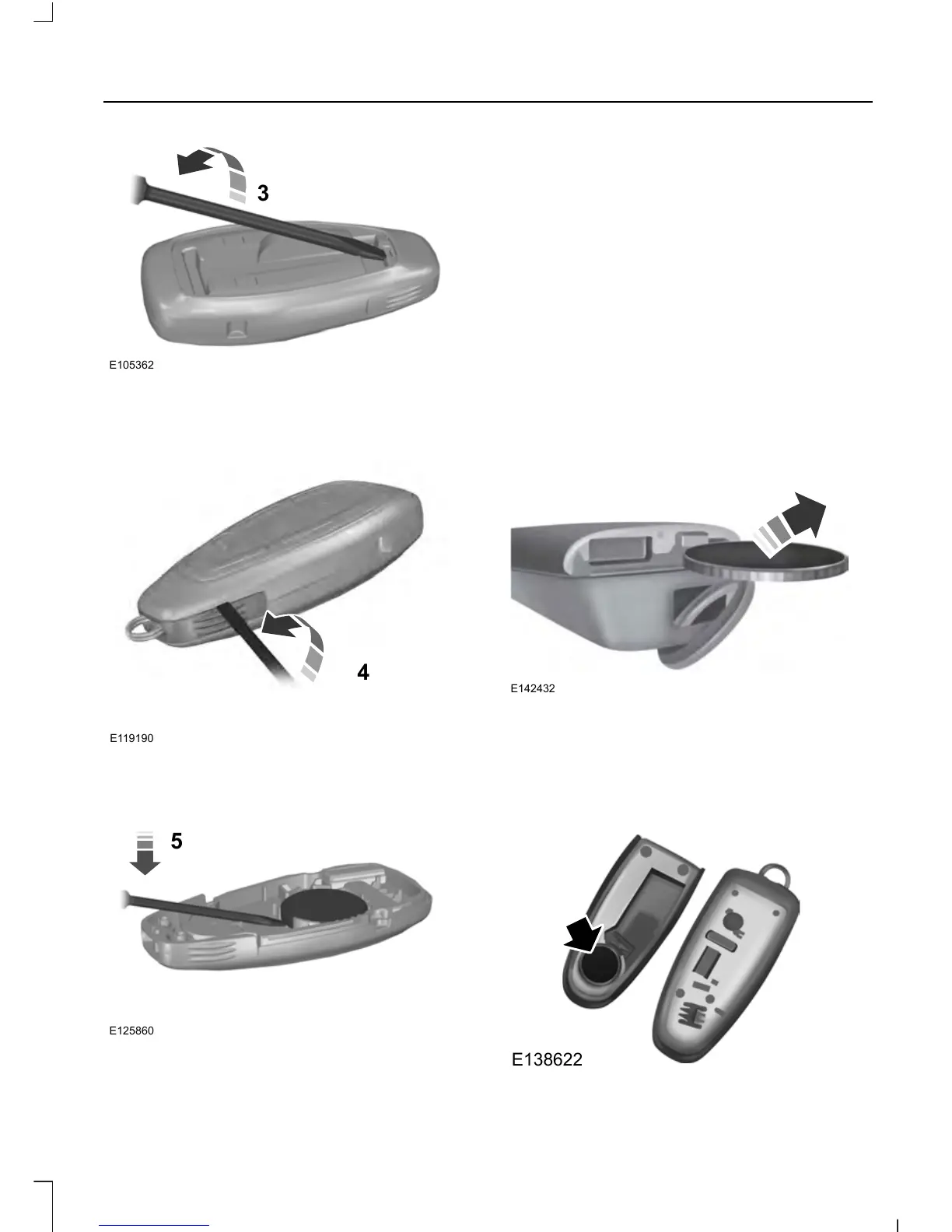

3. Twist the screwdriver in the position
shown to start separating the two
halves of the remote control.
4. Twist the screwdriver in the position
shown to separate the two halves of
the remote control.
Note: Do not touch the battery contacts or
the printed circuit board with the
screwdriver.
5. Carefully remove the battery with the
screwdriver.
6. Install a new battery with the + facing
downward.
7. Assemble the two halves of the remote
control.
8. Install the key blade.
Intelligent Access Key (Type 2)
1. Remove the backup key from the
transmitter.
2. Twist a thin coin under the tab hidden
behind the backup key head to remove
the battery cover. Do not use the
backup key to remove the cover or you
could damage the intelligent access
key.
47
C-MAX (CCG) Canada/United States of America, enUSA, Second Printing
Keys and Remote Controls
