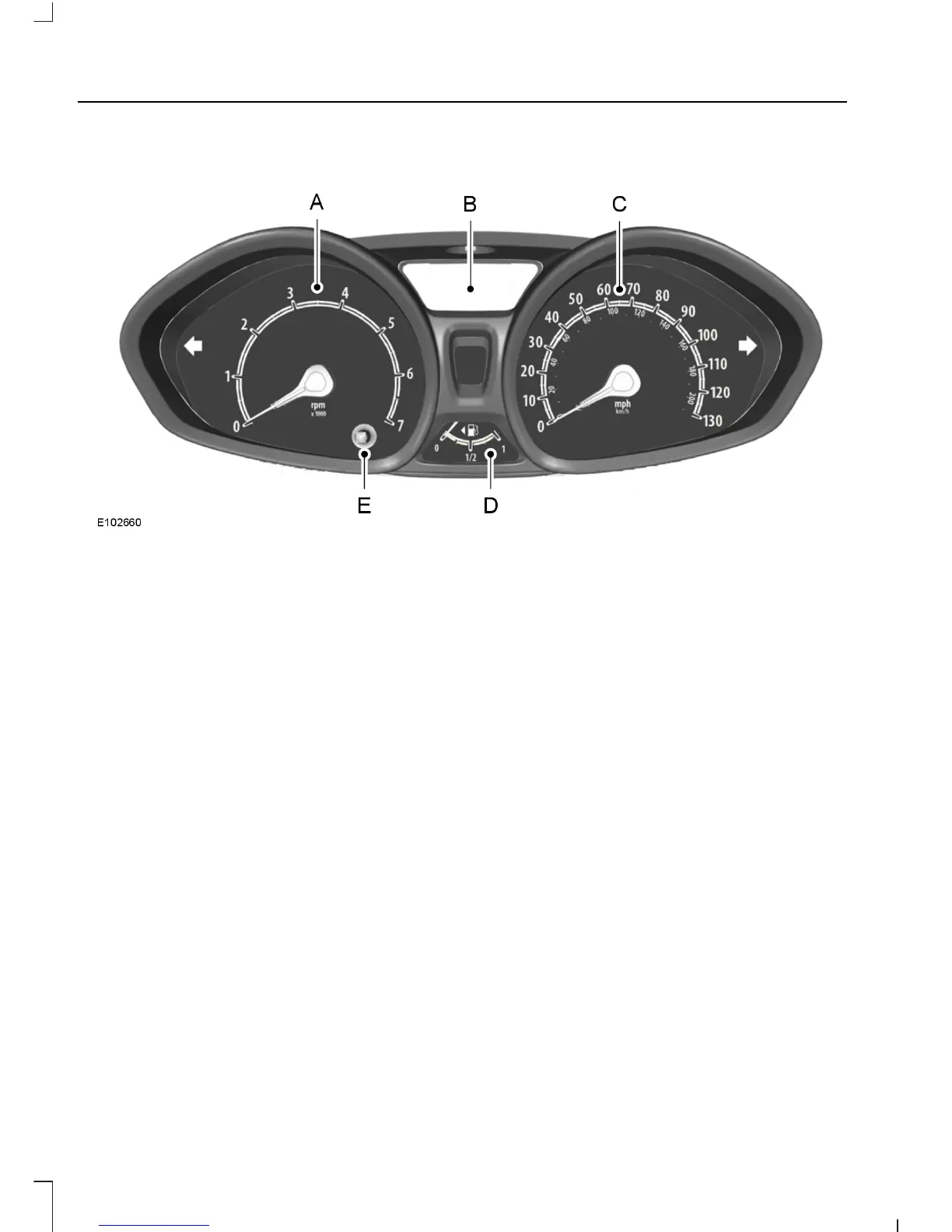

GAUGES

TachometerA

Information displayB

SpeedometerC

Fuel gaugeD

Tripmeter reset buttonE

Fuel Gauge

Switch the ignition on. The fuel gauge will

indicate approximately how much fuel is

left in the fuel tank. The fuel gauge may

vary slightly when your vehicle is moving

or on a gradient. The arrow adjacent to the

fuel pump symbol indicates on which side

of your vehicle the fuel filler door is located.

WARNING LAMPS AND

INDICATORS

The following warning lamps and

indicators will illuminate when you switch

the ignition on:

• Anti-lock brake system.

• Airbag.

• Brake system.

• Coolant temperature.

• Doors ajar.

• Engine.

• Frost warning.

• Ignition.

B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013

Instrument Cluster
