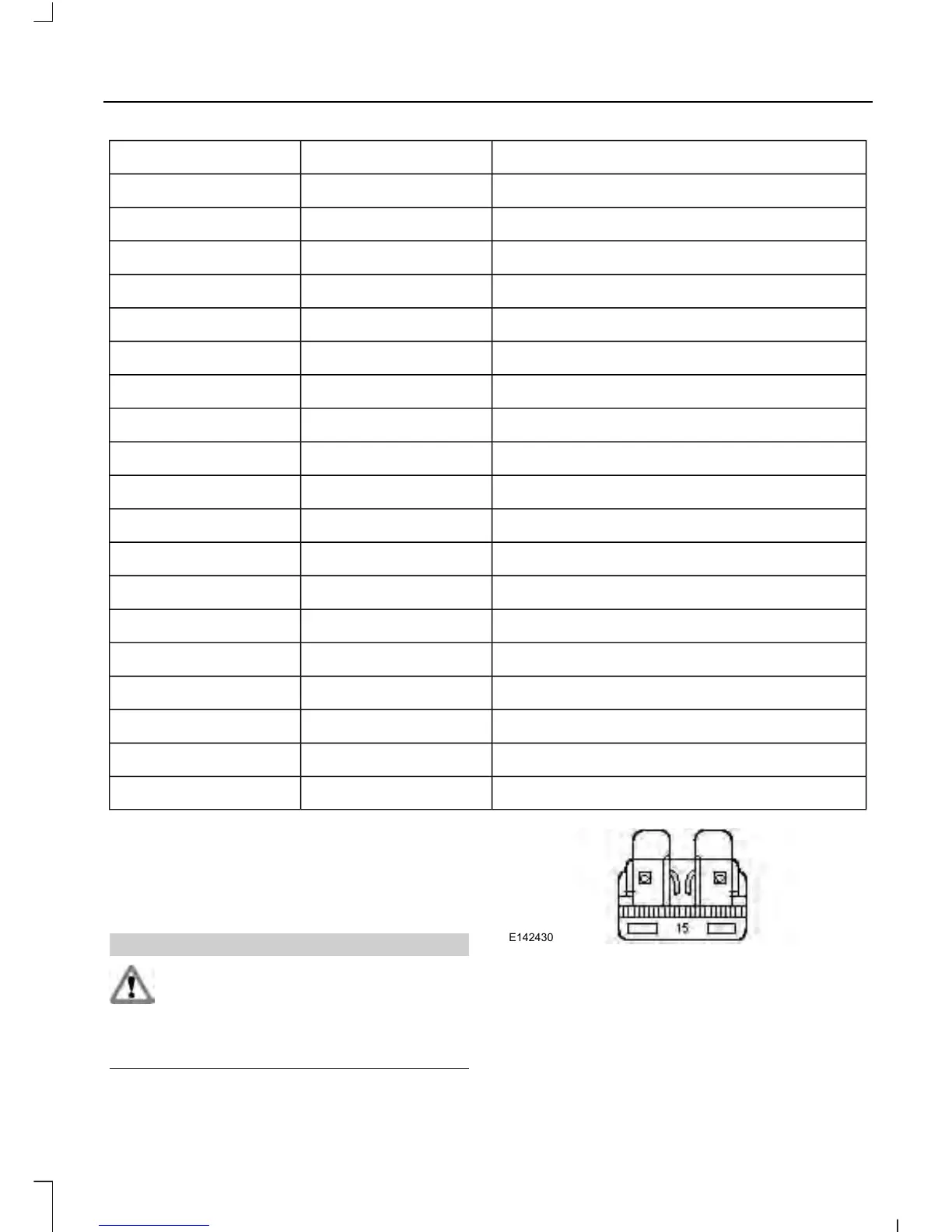

Protected componentsFuse amp ratingFuse or relay number
Driver seat heater20AF34
Passenger seat heater20AF35
Not used—F36
Power sun shade20AF37
Not used—F38
Not used—F39
Not used—F40
Not used—F41
Not used—F42
Not used—F43
Not used—F44
Humidity sensor5AF45
Fuel system10AF46
Rear 15 relayPower relayR1
Heated rear windowMini relayR2
Fuel door (C-MAX Energi)Micro relayR3
Not used—R4
Not used—R5
Rear wiperMicro relayR6
CHANGING A FUSE
Fuses
WARNING
Always replace a fuse with one that
has the specified amperage rating.
Using a fuse with a higher amperage
rating can cause severe wire damage and
could start a fire.
E142430
If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses
before replacing any electrical
components.
207
C-MAX (CCG)
Fuses
